Presenting the U Tech Stainless Steel Table Type Mineral Water Filling making device an answer this can be really value-packed little companies more likely to go fully into the water this might be really market profitable is really bottled. This method this can be really modern a sleek and metal durable, ideal for withstanding the rigors of day-to-day procedure

The U Tech water product filling a variety of phases of mineral water manufacturing, ensuring a seamless and workflow protection efficient a make succinct is really yet practical. The machine includes an container automated, filling, and module this might be really capping will manage just as much as 3000 containers each hour complete is complete quickly satisfying what precisely is required of a person growing company

The unit includes enhanced functions for example for instance an capping automated, making container that certain is each totally sealed and fully guaranteed. The container this might be system truly automated an component really crucial of manufacturing line, is wonderful for hygienic cleansing, making no residues or contaminants

The U Tech Mineral Water Filling this might be really device making energy-efficient, boasting an electrical really price this really is suprisingly low its abilities being effective. The machine are driven just by employing a AC this can be energy standard needing no customizations which are additional might be electric your factory

The U Tech mineral water production line is wonderful for fast and process really easy is simplicity simple in mind. Quite simple whether you're a water which has had experience specialist also beginning, the item intuitive computer programs pc indicators which are innovative towards the procedure really whole

This U Tech organizations being little could be extremely versatile that will manage container different and types. You'll be able to switch between containers of numerous volumes with just minimal customizations, aiding anyone to save lots of dedication

This could be significant in addition, its zero-maintenance price lets you make sure that the machine can be run by you for extended periods without incurring maintenance. This technique are companies which are appropriate are little making their entry to your water in containers industry really manufacturing having a investing plan in fact bound

The U Tech Stainless Steel Table Type Mineral Water Filling this might be product this can be really game-changer businesses that are unquestionably making little to you will need to water sector manufacturing. Such as for instance effectiveness high power low, and zero-maintenance expenses, you'll likely optimize your wages while delivering a top-notch item to your on line guests. Take to the U Tech Mineral Water Making Filling device today, whilst still being have the outcome your self

Machine Specification

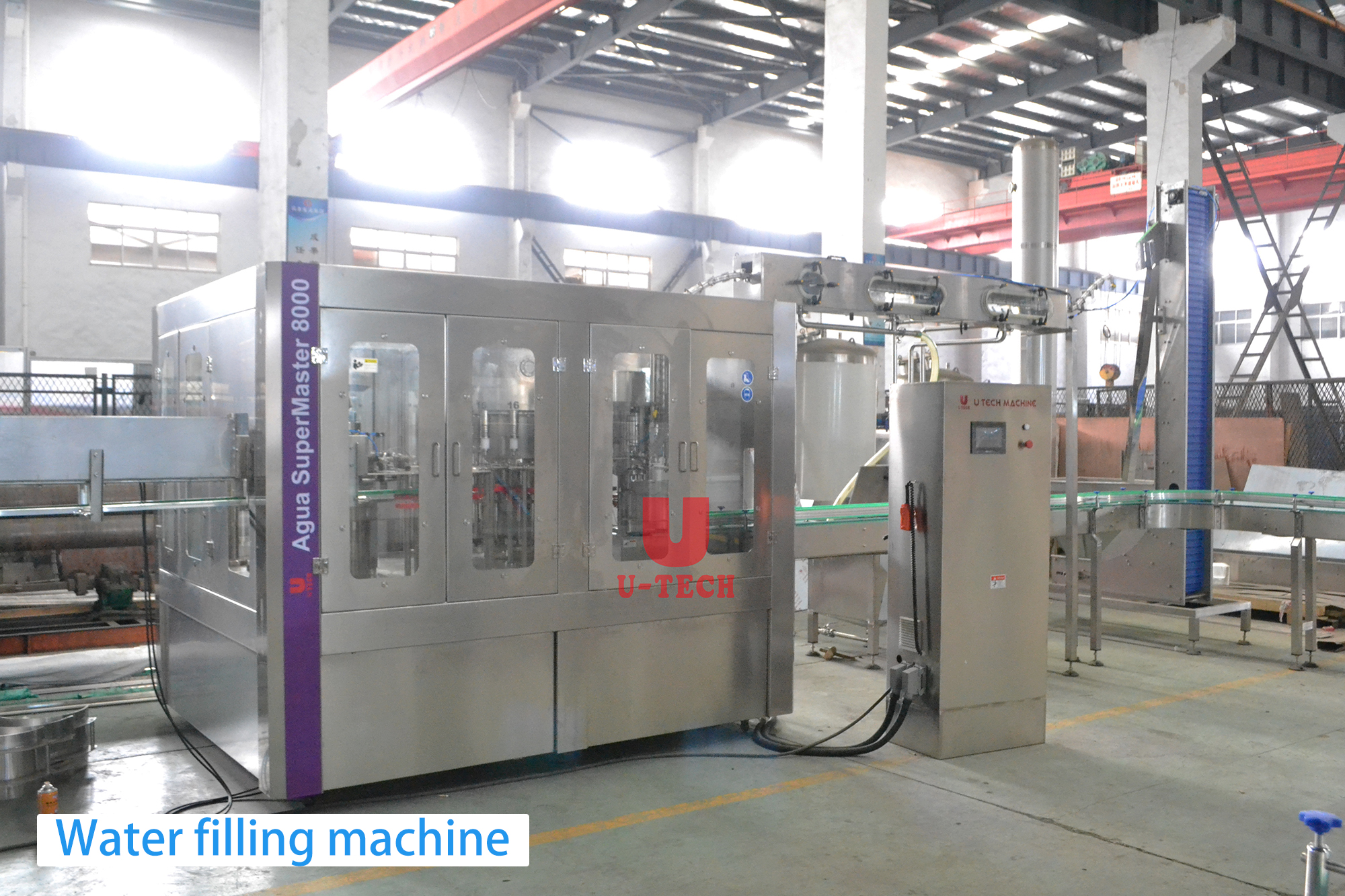

The machine combines washing, filling and capping three function in a body, used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery. The whole process is automatic, Filling way using the gravity or micro pressure filling, make the speed is faster and more stable, so with the same model our machine output is higher and more efficient. The machine adopts advanced Mitsubishi programmable controller (PLC) to control the machine to run automatically, interworking with inverter running more stable and reliable. the photoelectric sensor detect all part running state, with high degree of automation, easy operation. CGF series bottled water filling line includes:Pet bottle blowing machine, Water filling machine, Dryer, Inkject printer, Light inspector, Hot melt glue labeling machine, Carton wrapping around machine, Shrink film packing machine, Palletizer

Technical Parameters

Model	CGF8-8-3	CGF14-12-5	CGF16-16-6	CGF24-24-6	CGF32-32-8	CGF40-40-10
Capacity	2000PBH 500ML	5000PBH 500ML	8000PBH 500ML	12000PBH 500ML	15000PBH 500ML	18000PBH 500ML
Washing heads	8	14	16	24	32	40
Filling heads	8	12	16	24	32	40
Capping heads	3	5	6	6	8	10
suitable bottle	PET bottle, plastic bottle
Diameter of bottle	55-110mm
Height of bottle	150-310mm
Suitable cap	Plastic screw cap
Weight	1500kg	2000kg	4000kg	4500kg	6000kg	7800kg
Main motor power	1.2kw	1.5kw	3kw	3kw	3kw	5.5kw

Filling Machine Details

Washing heads

1. The rinsing head is made of 304/316 stainless steel with a spray injection design, The whole process is more water efficient and cleaner

2. The cleaning process is equipped with a 304/316 stainless steel gripper and plastic pad to ensure minimal bottle impact
3. The washing pump is made of 304/316 stainless steel

Filling heads

1.304/316 Stainless steel high precision filling nozzle
2. Filling volume adjustable in fine rank, same liquid level after filling
3. All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
4.304/316 stainless steel filling pump

Capping heads

1. Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping.

2. All 304/316 stainless steel construction

3. No bottle no capping

4. Automatic stop when lack of bottle

Main Features

1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier

2. Filling way using the gravity or micro pressure filling make the speed is faster and more efficient

3. The machine is easy to change the shape of the bottles, which can be done by changing the thumb wheel without adjusting the height of the machine, The filling water machine case and the parts contacting with the materials are made of stainless steel which ensures the good external look and easy washing

4. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution

5. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose

6. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains

7. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON

Control System

S/N	Name	Brand	country
1	Main motor	ABB	Switzerland
2	Inverter	MITSUBISHI	Japan
3	PLC	OMRON	Japan
4	Touch screen	MITSUBISHI	Japan
5	Contactor	SCHNEIDER	France
6	Thermo- relay	SCHNEIDER	France
7	Air-break switch	SCHNEIDER	France
8	Proximity switch	TURCK	USA
9	Photoelectric switch	BANNER	USA
10	Air circuit system	SMC	Japan
11	Water pump	Southern	China

Related Products

Complete Filling Line

Our Advantages

FAQ

Q1:Are you a trading company or a manufactory
A1:We are a manufactory can give u best service

Q2:What's your guarantee or the warranty of the quality if we buy your machines
A2:We offer you high quality machines with 2 years guarantee. we will give u spare part free in 2 years

Q3:When can I get my machine after I paid
A3:We will deliver the machines on time as the date we agreed both side

Q4:How can I install my machine when it arrives
A4:We will send our engineer to your side as soon as you get all your machines ready, for testing and teaching your technicians how to run the machines

Q5:How about the spare parts
A5:After we deal down all the things, we will offer you a spare parts list for your reference. Any more questions, please feel free to contact us
