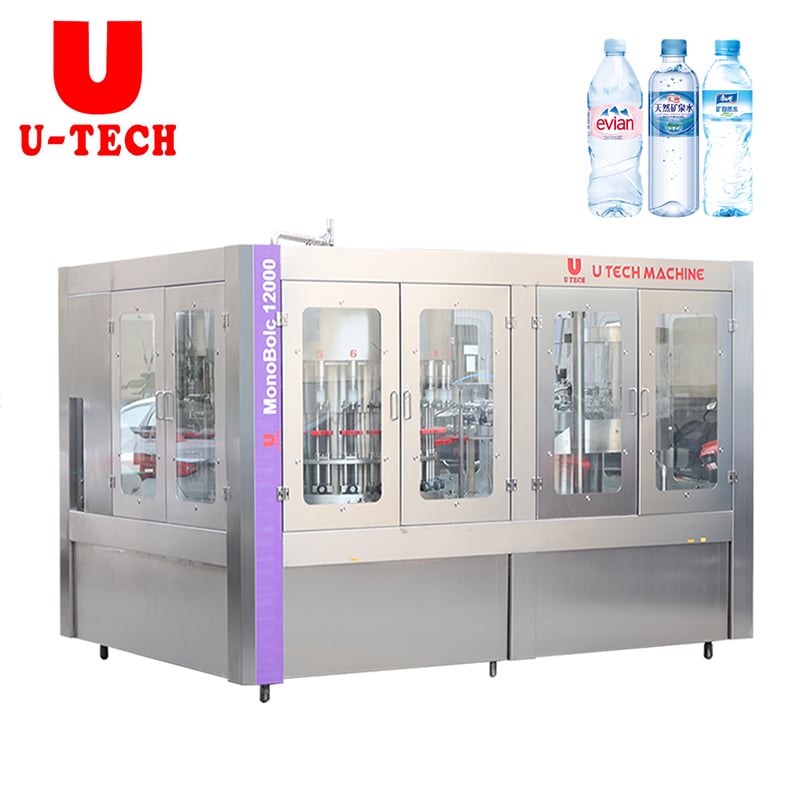

Product introduction
The Complete Bottled Mineral Water / Pure Water Production Line used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic.
Machine details

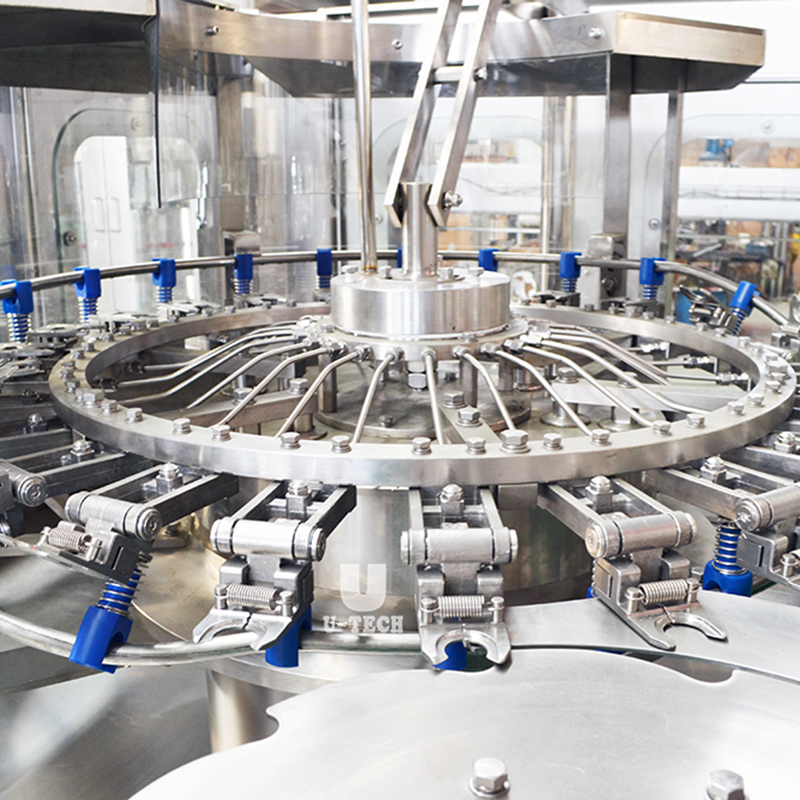

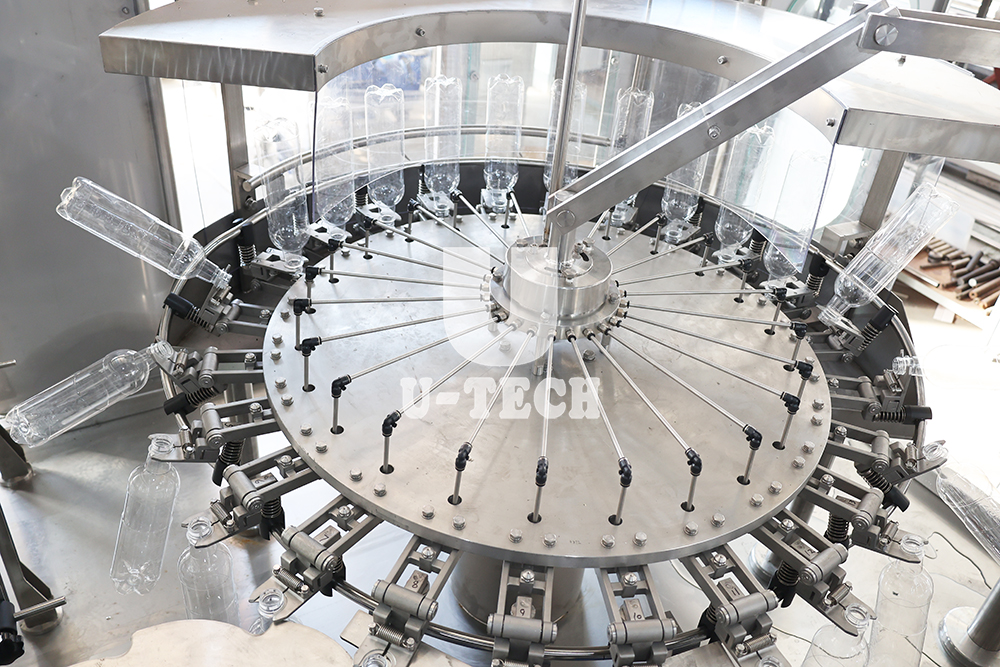

Washing heads
All 304 stainless steel rinser heads, water spray style inject design, more save water consumption & more clean 304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing

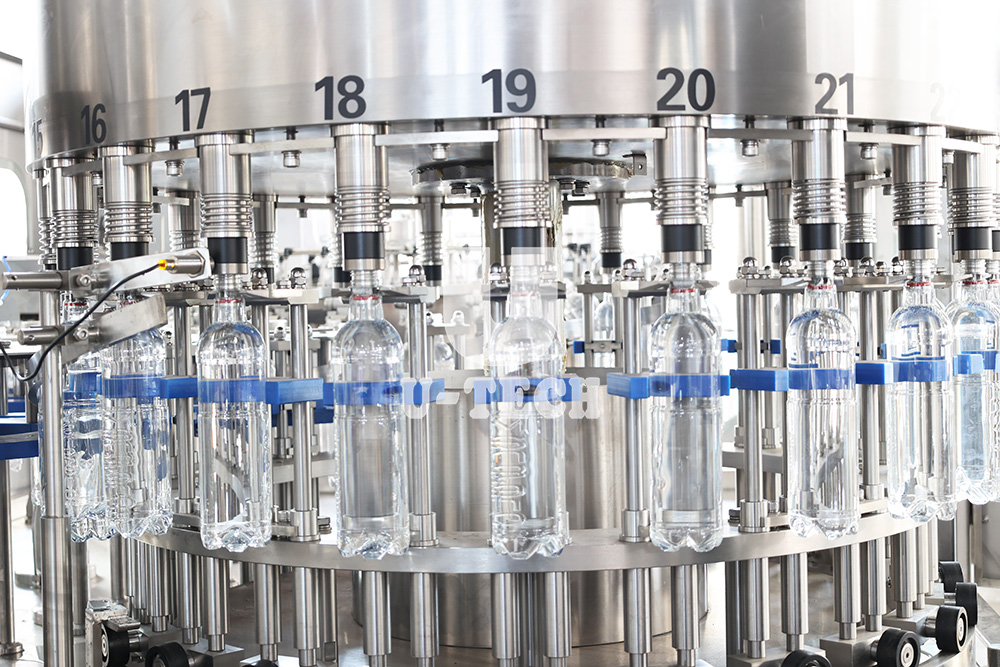

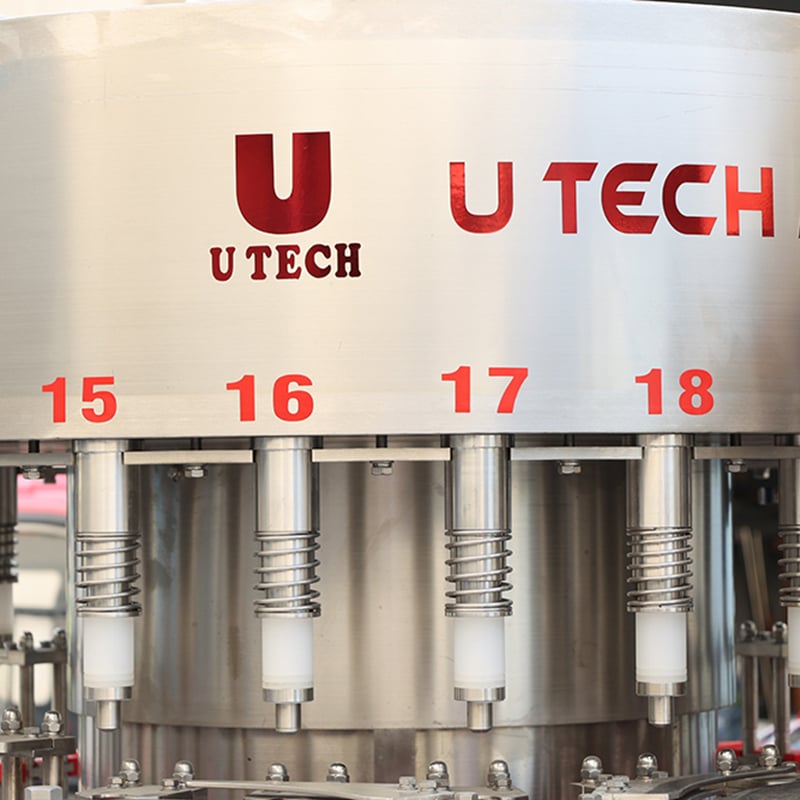

Filling heads
High precision filling nozzle, PLC variable signal control, ensure high filling precision Gravity filling, & filling smoothly & steadily All 304 stainless steel contact parts & liquid tank, fine polish, easy to clean No bottle no filling.

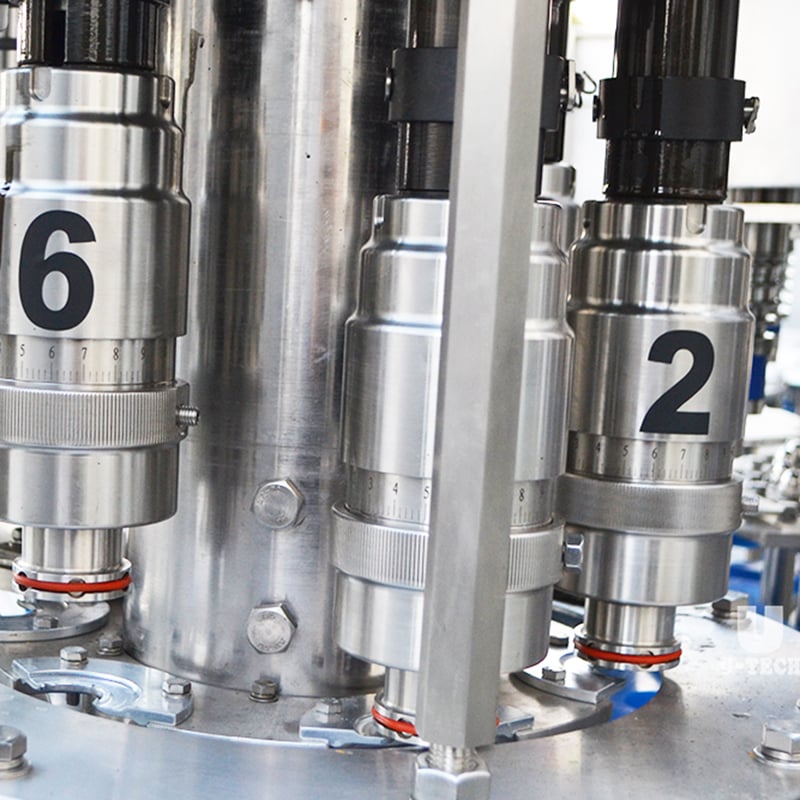

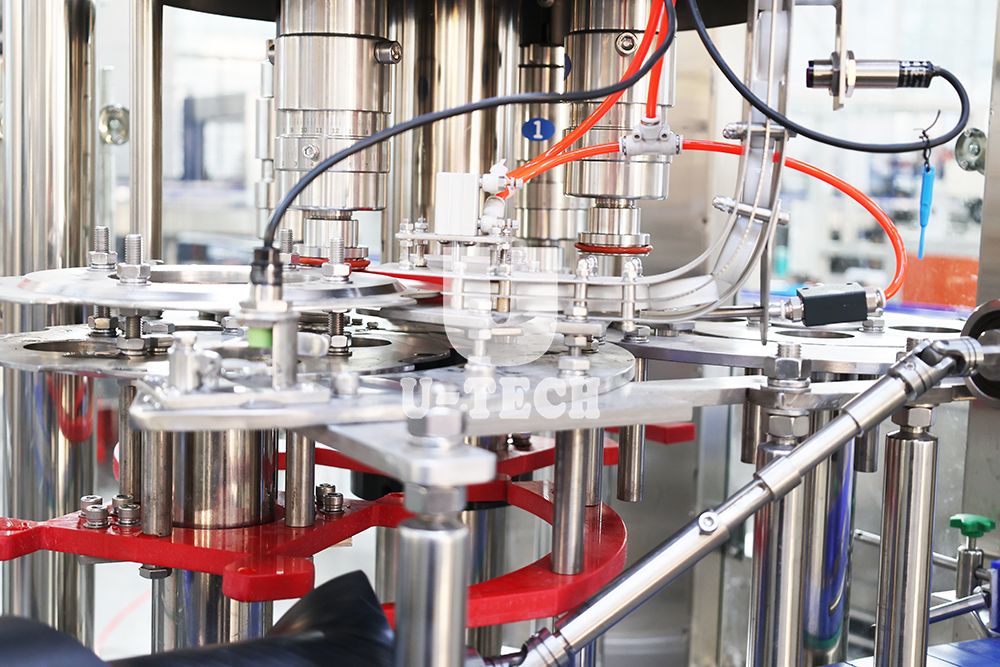

Capping heads
Place & capping system,electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping All 304 stainless steel construction No bottle no capping and Automatic stop when lack of bottle.
Technical parameter
Model | CGF24-24-6 |
Capacity | 12000PBH |
Washing heads | 24 |
Filling heads | 24 |
Capping heads | 6 |
suitable bottle | PET bottle,plastic bottle |
Diameter of bottle | 55-110mm |
Height of bottle | 150-310mm |
Suitable cap | Plastic screw cap |
Weight | 4500kg |
Main motor power | 3kw |
