Automatic 10 16 19 liter 20 liter 5 gallon barrel bottle water washing filling machine line

U Tech

The U Tech Automatic 5 Gallon Barrel Bottle Water Washing Filling Machine Line is a solution bottling that is affordable in 10, 16, 19, and containers that are 20-liter. The item is made to meet up with industry rigorous, and yes it features advanced technology that ensures effectiveness simpleness that is optimum of good use, and reliability

This U Tech unit is capable of washing, filling, and capping equally as much as 1200 containers each complete hour, causing the well suited for small to water operations that are medium-sized. It will often be packed with a control advanced that enables operators observe the manufacturing effortlessly procedure which makes alterations in to the fly

The apparatus is created use that is making of which may be top-notch are manufactured to withstand the harsh conditions with this water bottling plant. The washing system runs into the all jet that is effective of to scrub the interior in regards to the containers, although the system filling a valve that is pneumatic make sure a precise and fill every time consistent

The product capping fast and dependable, in a position to seal each container having a tight and limitation secure just an appropriate concern of moments. The unit furthermore carries a water treatment system that eliminates any impurities through water ahead of it being bottled, making certain each container is packed with neat and water secure that is normal

The U Tech Automatic 5 Gallon Barrel Bottle Water Washing Filling Machine Line is not difficult to work, with effortless settings and development intuitive helps it be simple also for novice operators to work with. It will always be a task continue that is straightforward with a design modular licenses access that is immediate everybody the key elements

This product may be an alternate water that is quite companies seeking to improve their effectiveness and minimize their costs. The U Tech Automatic 5 Gallon Barrel Bottle Water Washing Filling Machine Line is meant to be seen an addition that is valuable just about any water bottling procedure featuring its advanced level technology, top-quality construction, and gratification dependable


Product Introduction
Automatic 10 16 19 liter 20 liter 5 gallon barrel bottle water washing filling machine line supplier
The whole filling speed ranges from 100BPH to 2000BPH. Filling the pure water or the mineral water in 3 or 5 gallons. The series of machine integrate rinsing, contain rinser-filler-capper mono block, automatic loading machine, bottle outside washer, bottle inside washer, decanter, heating shrink tunnel, conveyor system, complete line control system
Technical parameter
5 gallon water filling machine






Model
TXG-150
TXG-300
TXG-450
TXG-600
TXG-900
TXG-1200






Capacity(for 5 gallon)
150BPH
300BPH
450BPH
600BPH
900BPH
1200BPH






Working position number
5
7
9
11
13
15






Filling heads
1
2
3
4
8
10






Capping heads
1
1
1
1
1
1






suitable bottle
PET bottle    plastic bottle






Diameter of bottle
265-273mm






Height of bottle
150-360mm






Suitable cap
Plastic cap






Weight
500kg
2500kg
3000kg
3500kg
7000kg
8000kg






Main motor power
1.5kw
6kw
30kw
32kw
35kw
40kw

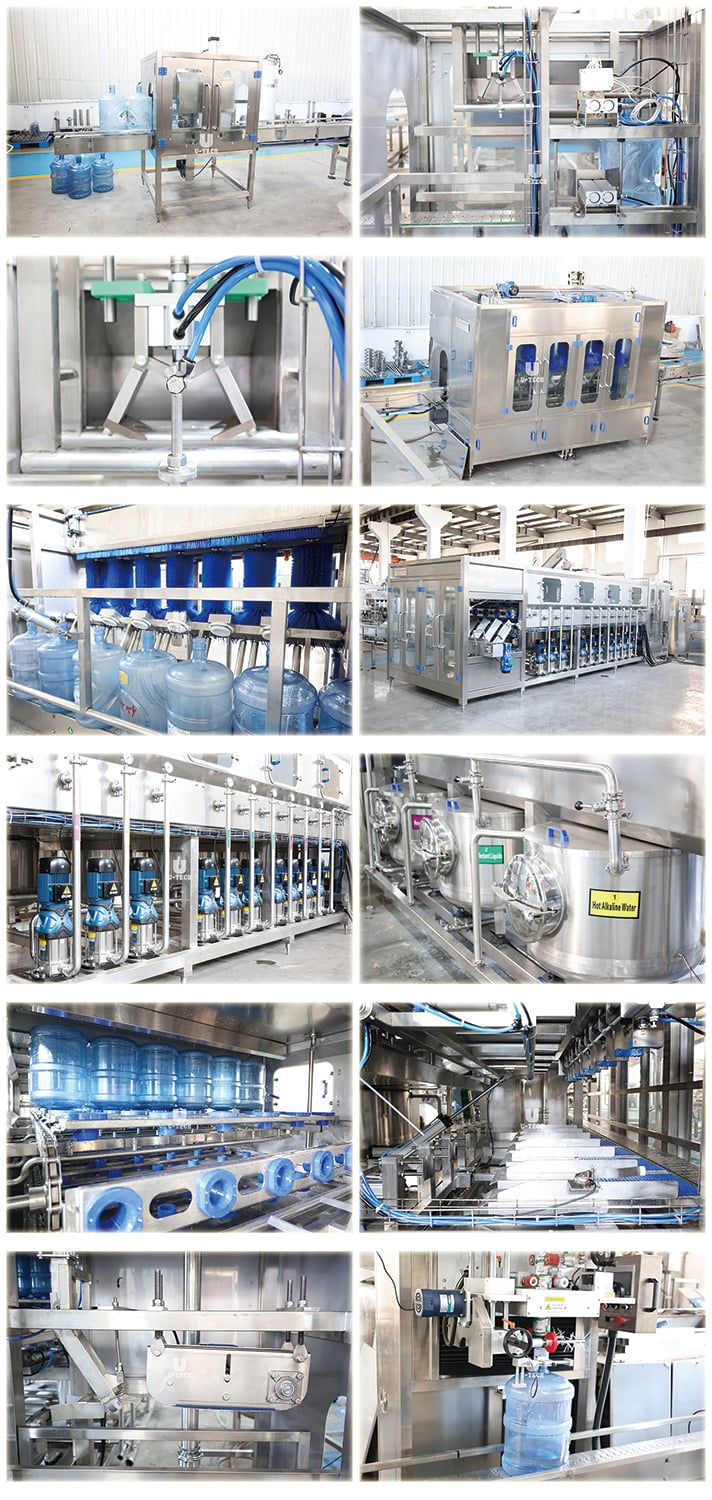

Datail images
Automatic 10 16 19 liter 20 liter 5 gallon barrel bottle water washing filling machine line factory
Automatic 10 16 19 liter 20 liter 5 gallon barrel bottle water washing filling machine line details
Cap Remover


It is used to remove the 5 gallon cap and bottle label
Bottom discharge connector with recycle water collection tank
Welding : full welding with sealing gum
Outside washing machine


Brushes are motorised and clean the bottle externally. Since they make the bottle spin, the water jet hits not only the bottom but also the sides of the bottle. It's used forall-round cleaning the bottle, significantly improves cleaning efficiency
Automatic 10 16 19 liter 20 liter 5 gallon barrel bottle water washing filling machine line supplier
Automatic 10 16 19 liter 20 liter 5 gallon barrel bottle water washing filling machine line manufacture
Inside Washing Part


1. It is designed for 5 washing treatment
2. It can manage 5 liters to 5 Gallons bottles
3. Automatic bottle unloads and out load
4. Neck handling of the bottle by the grippers
5. Lack of point with water stagnation

6. Automatic disinfection of the rinsing area.

7. Change-over easy and with no downtimes

8. Easy access for ordinary maintenance
Filling Part

1. Uploading and dropping barrels changed from 45 degree to translatory which is more stable
2. Nozzle can insert into 10-15cm of the barrel in order to rinse little impurities down. Rinsing pump is separately controlled by different magnetic valves. Pump only work when there is barrel on that. It can avoid the mixture of different cleaning fluid
Automatic 10 16 19 liter 20 liter 5 gallon barrel bottle water washing filling machine line details
Automatic 10 16 19 liter 20 liter 5 gallon barrel bottle water washing filling machine line supplier
Capping Part
The PRESS-ON CAPPER is a linear machine used for caps applied on the bottle by pressure
It includes: Cap hopper, Canal chute, Placing system of cap on the neck, Device to snap the cap on the neck. The bottle takes the cap directly from the canal chute. The snapping of the cap on the bottle neck is carried out through the pressure developed by a belt conveyor, provided with a system to adjust the force in order not to stress the bottle
Our Suppliers
Automatic 10 16 19 liter 20 liter 5 gallon barrel bottle water washing filling machine line supplier
Name
Brand
Area
PLC
Siemens
Germany
Inverter
Siemens
Germany
Contactor
Siemens
Germany
Touch screen
Siemens
Germany
Motor
ABB
Swiss
Pneumatic parts
FESTO
Germany
Electrical parts
Schneider
France
Related Products
Automatic 10 16 19 liter 20 liter 5 gallon barrel bottle water washing filling machine line details
The semi-automatic bottle blowing machine
The semi-automatic bottle blowing machine is controlled by microcomputer, which can more accurately control the technical parameters involved. The operation is simple, safe and only requires one person, no special training is required
Automatic 10 16 19 liter 20 liter 5 gallon barrel bottle water washing filling machine line manufacture

Sleeve Labeling Machine

This machine adopts international advanced technology; cover the circle label on the pet bottle. And then hot shrinking to fix on the position which bottle body is designed. This machine's structure is compact, and suitable for the production line of different direction and different height
The machinery part adopts combination designing of modularization, and makes the machine reasonable
The height adjustment adopts motor fluctuating;It is convenient to replace the material. The special cutter head designing, make the film-rolling cut more correct and reliable
About U TECH
Automatic 10 16 19 liter 20 liter 5 gallon barrel bottle water washing filling machine line manufacture
Automatic 10 16 19 liter 20 liter 5 gallon barrel bottle water washing filling machine line supplier
Automatic 10 16 19 liter 20 liter 5 gallon barrel bottle water washing filling machine line supplier
Certificate
Automatic 10 16 19 liter 20 liter 5 gallon barrel bottle water washing filling machine line supplier
Automatic 10 16 19 liter 20 liter 5 gallon barrel bottle water washing filling machine line details
FAQ
1. who are we
>>We are based in Jiangsu, China, start from 2014, sell to South America (15.00%), Domestic Market (15.00%), North
America (13.00%), Africa (10.00%), Central America (10.00%), Southern Europe (7.00%), Southeast Asia (5.00%), Mid East (5.00%), Western Europe (5.00%), South Asia (5.00%), Eastern Europe (4.00%), Oceania (2.00%), Eastern Asia (2.00%), Northern Europe (2.00%). There are total about 11-50 people in our office

2. how can we guarantee quality
>>Always a pre-production sample before mass production
>>Always final Inspection before shipment

3. what can you buy from us
>>Water Filling Machine, Juice Filling Machine, Carbonated Drink Filling Machine, Oil Filling Machine, Face Mask Making Machine

4. why should you buy from us not from other suppliers
>>15 years experiences >>Strict quality control:QC department
>>Reasonable price:factory directly
>>on time service : in 2 hours give u answer >>2 years guarantee:you can get any spare part free from us

5. what services can we provide
>>Accepted Delivery Terms: FOB, CFR, CIF, EXW
>>Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF
>>Accepted Payment Type: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash
