The U Tech Factory Automatic 3 in 1 glass animal containers Carbonated that is being synthetic Making Filling manufacturers Soda Water unit is revolutionizing the way sodas were created and consumed! This product high-tech three crucial actions in to the production procedure into one procedure that is seamless making this the most efficient and convenient methods to create delicious beverages
Through the center in terms of U Tech unit is its carbonation high rate system effective at producing non-alcoholic drink that is soft with amazing precision and perseverance. The product is created particularly to spotlight both glass and animal synthetic containers, providing greater freedom for manufacturers
The strategy entire automated, due to the unit programmed to handle the carbonation, filling, and capping with regards to the containers. This might make sure it is among the easiest products to your workplace, with less possibility of individuals blunder or contamination through the entire production procedure
The U Tech Factory Automatic 3 In 1 unit comes with a design licenses that could be exclusive faster production, causing this to be the most effective products you can buy. The apparatus is likely to make up to 3,000 containers each hour, which makes it the decision that is most appropriate for manufacturers who want to increase their manufacturing while maintaining the requirements that are standard greatest
What’s more, the U Tech device comes with a system incredibly causing this to be a task that is facile operate, monitor, and adjust the production procedure. This implies manufacturers can effectively transform settings adjust carbonation quantities, and choose the container size well with no hassle
The U Tech unit also has a range that is authentic of features that make it secure to utilize. For example, it a container that is system that is computerized stops these devices from filling containers that could be presently filled, reducing the likelihood of product waste the U Tech Factory Automatic 3 In 1 cup animal synthetic containers Soft Carbonated Drink Making Filling manufacturers Soda Water unit is undoubtedly an investment that is great both small and scale that is big drink manufacturers. The merchandise seriously isn't tough to make use of, really efficient, and affordable, causing this to be a selection great soda that is creating being top-quality downtime paid off. Today therefore simply why maybe not improve your manufacturing abilities and luxuriate in the items that are numerous are superb the U Tech Factory Automatic 3 in 1 unit
Automatic bottle water/ juice/ carbonated drink beverage filling packing machine production line
Products Introduction
1. The Advanced Carbonated Beverage Filling Machine / Soda Water Filling Equipment is mainly used for filling soft drink. It combines washing and filling and capping as one automatic body suitable for PET or other plastic bottles. The equal pressure filling technology is adopted enabling it to fill more efficiently and more stably with more output than the machine of the same level from others
2. Besides using photo-electronic detectors to detect the running of every important sub-process, it employs PLC from OMRON for automatic control of the whole process and new type air-channel for bottle-loading featuring speed and damage-free of bottle
3. The handing-over of bottles between two linking structures is fulfilled by applying clamping-bottle-neck method
4. For bottle of different shape only a few parts need to be changed and the substituting is simple, which shows the machine is of good adaptability
5. High automation and easy operation make it an ideal option for beverage companies
Model |
DCGF8-8-3 |
DCGF12-12-6 |
DCGF18-18-6 |
DCGF 24-24-8 |
|
|
washing, filling and capping heads No. |
8-8-3 |
12-12-6 |
18-18-6 |
24-24-8 |
|
|
Capacity |
1500~2000BPH |
3000~3500BPH |
4000~5000BPH |
6000~8000BPH |
|
|
Bottle Volume Range |
volume=330-2000ml |
φ=50-110 H=150~340mm volume=330-2500ml |
|
|
Motor power kw |
Main motor 1.9 KW |
Main motor 3.5kw |
Main motor 4.0kw |
Main motor 4.8kw |
|
|
Overall dimensions mm |
1900*1420*2000 |
2450*1800*2400 |
2650*1900*2400 |
2900*2100 *2400 |
|
|
Weight (kg) |
|
2500 |
3500 |
4500 |
|
|
Model |
DCGF 32-32-8 |
DCGF 40-40-10 |
DCGF 50-50-12 |
DCGF 60-60-15 |
|
|
Washing, filling and capping heads No |
32-32-8 |
40-40-10 |
50-50-12 |
60-60-15 |
|
|
Capacity |
8000-10000BPH |
10000-12000BPH |
12000-15000BPH |
15000-18000BPH |
|
|
Bottle Volume Range |
volume=330-2000ml |
φ=50-110 H=150 ~340mm volume=330-2500ml |
|
|
Motor power kw |
Main motor 7.6kw |
Main motor 8.3kw |
Main motor 9.6kw |
Main motor 15Kw |
|
|
Overall dimensions mm |
4100*2000 *2400 |
4550*2650 *2400 |
5450*3210 *2400 |
5500*3510 *2400 |
|
|
Weight kg |
6500 |
8500 |
9800 |
12000 |
|
|

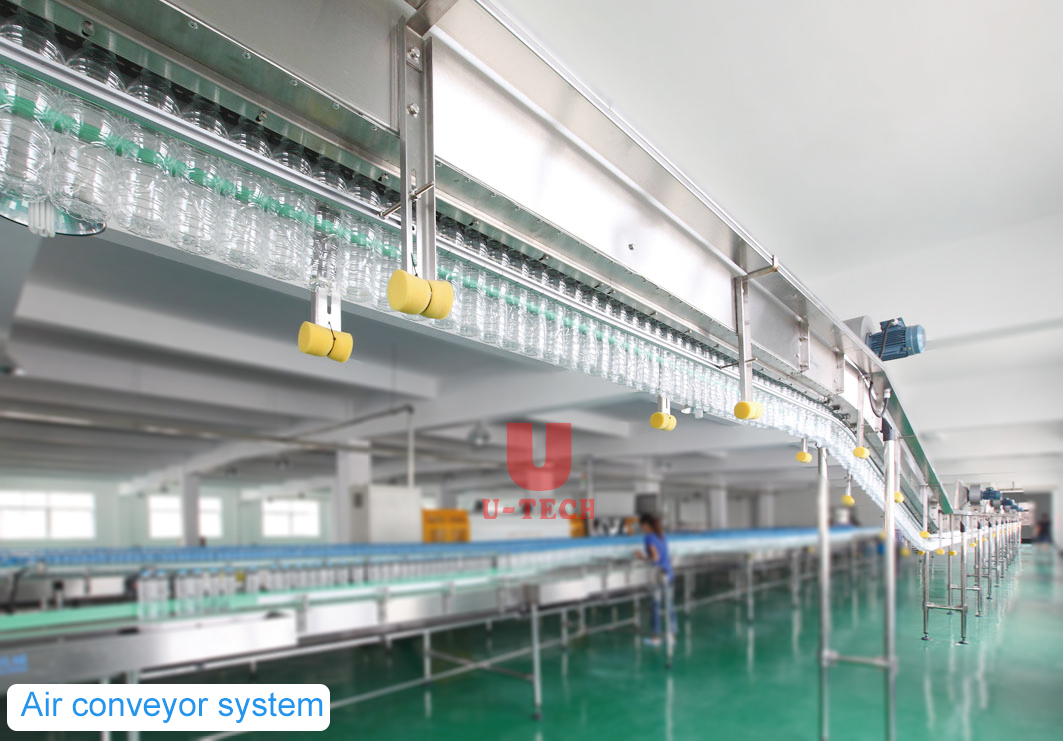

Bottle Inlet Air Conveyor
All Stainless Steel 304 include the all the connection parts and bottle exchange part, Big motor Air fan Steady running for the machine, Strong Machine, Can be customize the length and design
Out Look
> 304 stainless steel frame
> Tempering Glass window, Clear & no odor
> Excellent start wheel design, easy change over parts
> Machine Base with anti-rust process, ensure the forever anti-rust
> All seal where liquid may Leakage & base neck come with rubber, water proof
> Manual lubrication system
Washing Station
➢ All 304 stainless steel ringer heads, water spray style inject design, more save water consumption & more clean
➢ 304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
➢ 304 stainless steel washing pumps
Filling Station
➢ High precision filling nozzle, PLC variable signal control, ensure high filling precision & filling smoothly & steadily,
➢ All 304 stainless steel contact parts & liquid tank, fine polish, easy to clean
➢ No bottle no filling
Capper Station
➢ Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
➢ All 304 stainless steel construction
➢ No bottle no capping

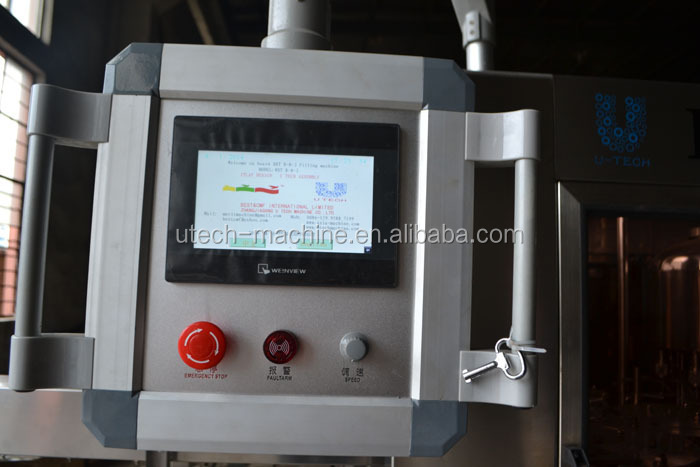

Safe Device & World Famous Electrical Configuration
Bottle Exchange Parts For Each Bottle Type

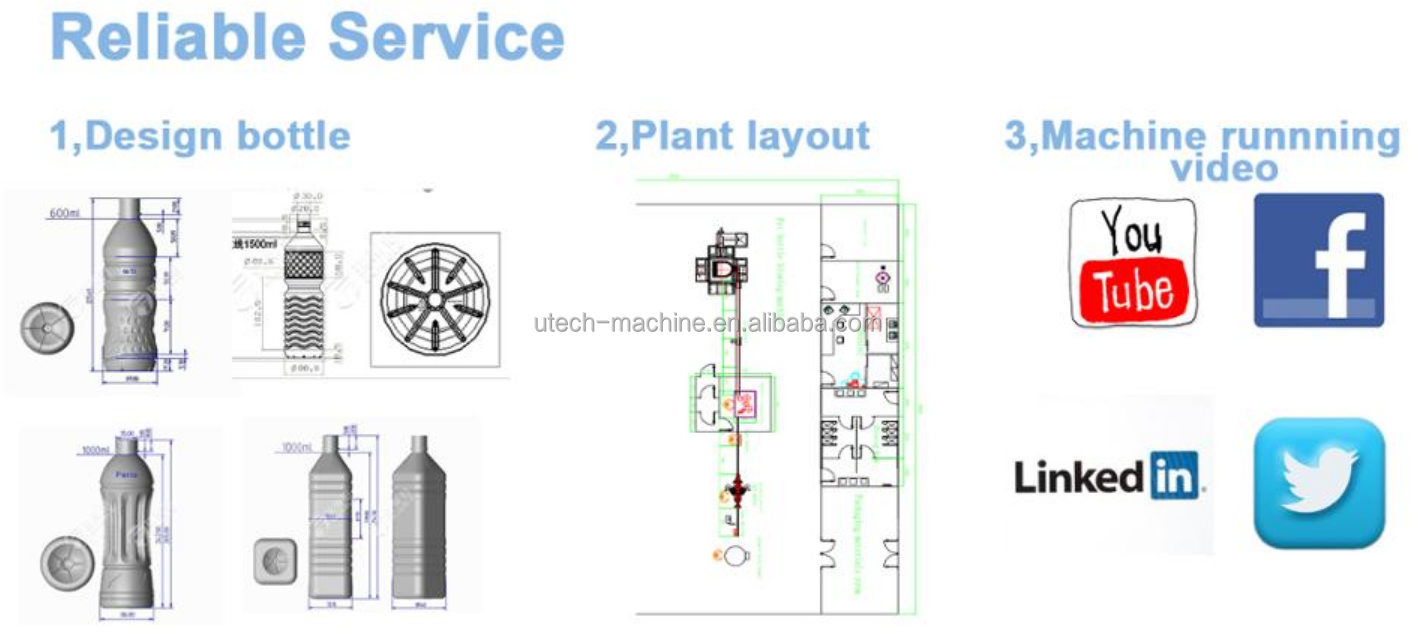

Free 2D & 3D Bottle Design
Our Machine can fit bottle size from 100ml ~ 2000ml Bottle / 3L ~10L Bottle 10~25L Bottle And three size of bottle fitting parts for free
Free Layout Plant Design
Every Factory are different and unique. We will special design the layout according to your factory, supply the best beverage package solution for you

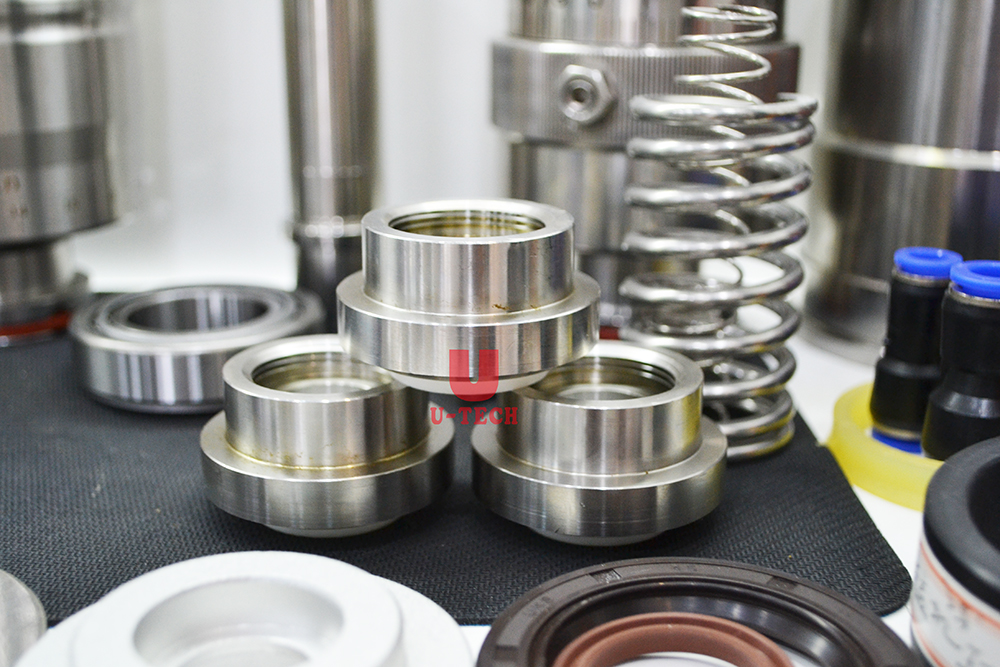

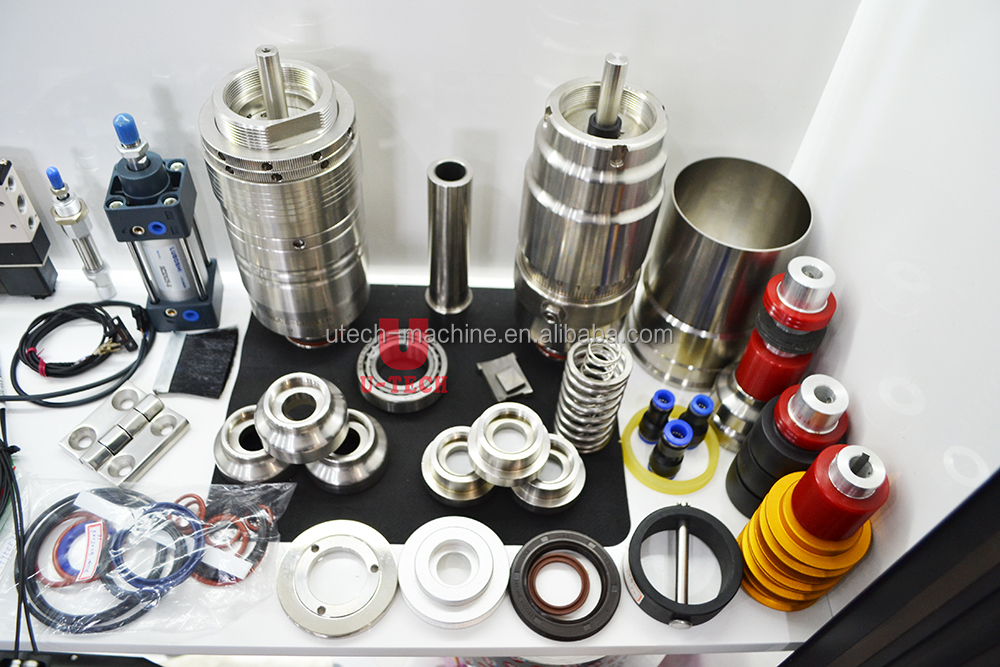

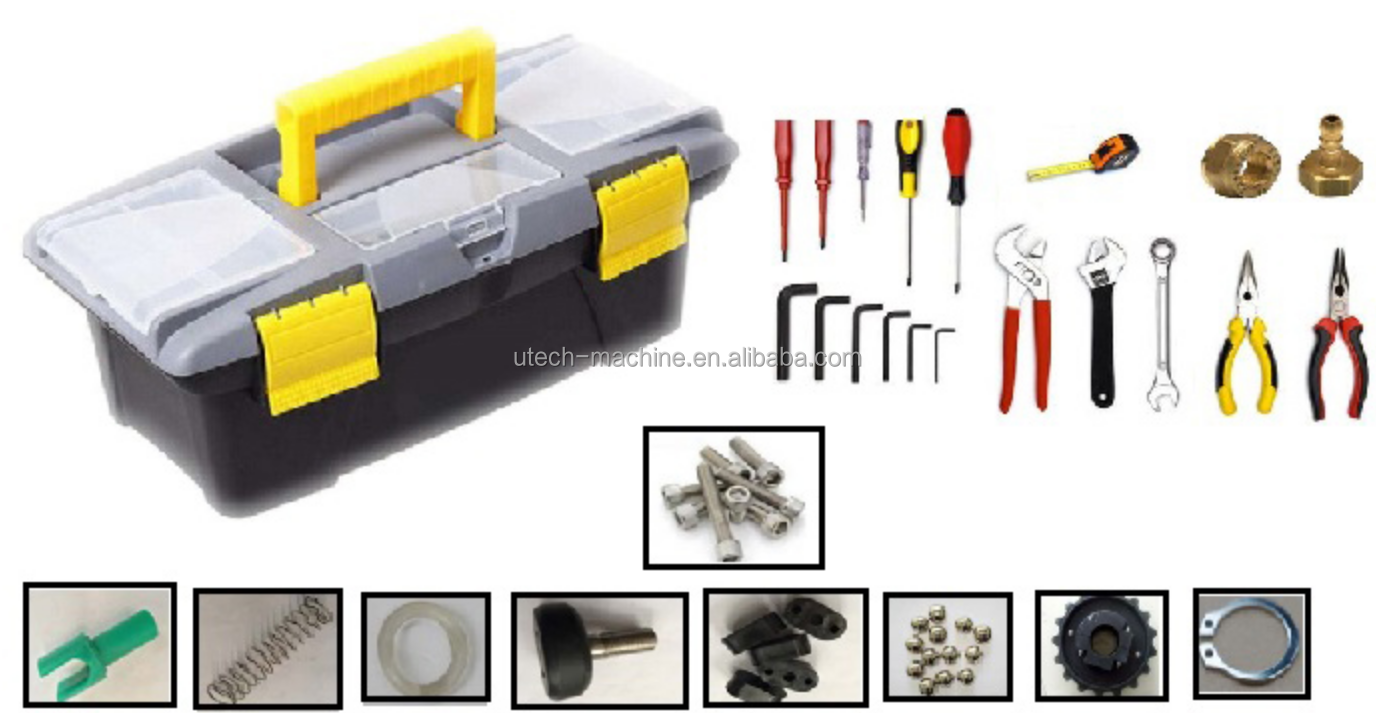

Free Spare Parts
All Reliable Machine will be supply Two year Spare parts for Free. High Quality Parts ensure the stable of machine's running

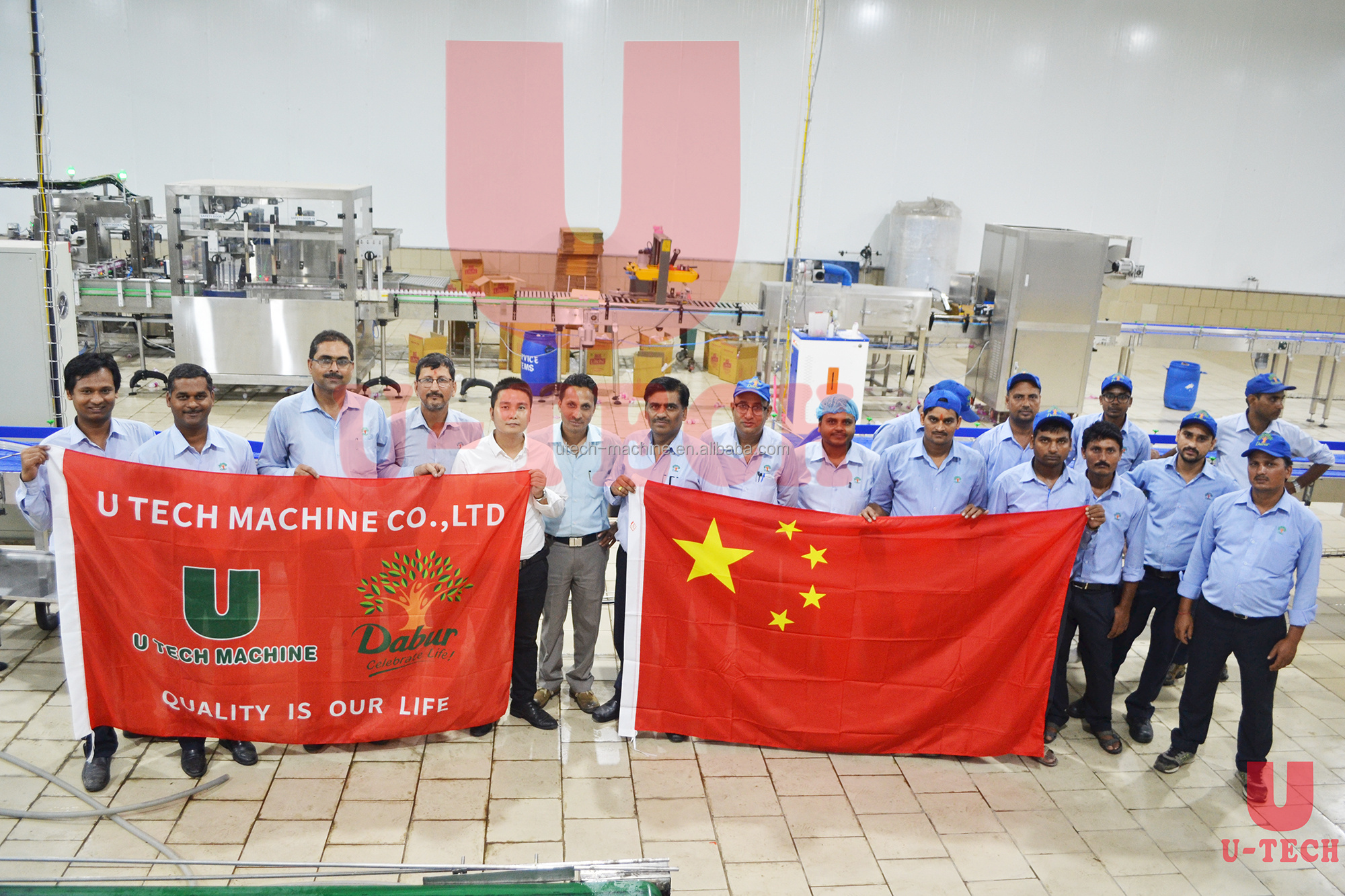

Engineer Available Installation Service
Our engineer can go to your factory to install the machine, give you the operating manual and train your employee until they can operate the machine well
Different Liquid Filling Machine
Automatic 3 in 1 carbonated soft drink filling machine plant In Uzbekistan
Suitable : Carbonated Drink, etc
Bottle Material : PET/Metal
Bottle Type : Round / Square / Unique
Cap : Screw cap
Label : Sticker Label / Shrink Label
Can Filling Line In Mexico
Suitable : Carbonated Drink, etc
Bottle Material : Metal
Bottle Type : Round
Cap : Sealing cap
Label : Printing Label / Shrink Label
Soda Water Filling Line In Nigeria
Suitable : Soda Water, etc
Bottle Material : PET/ Glass
Bottle Type : Round
Cap : Screw Aluminum cap
Label : Sticker Label / Shrink Label

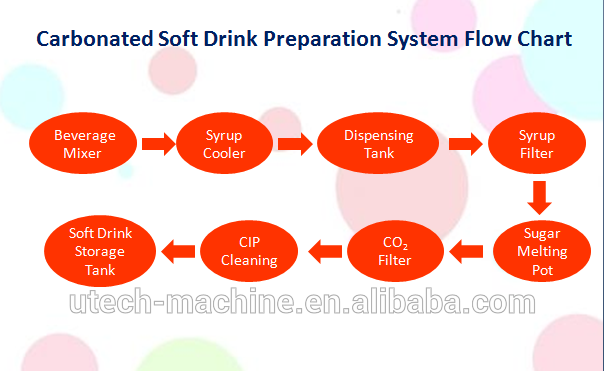

Beverage Mixer
The mixer is mainly suitable for mixing process of all kinds of carbonated drinks
Auto Bottle Blowing Machine
<1>New Auto Preform Unscrambler System
<2>Perfect heating system design decrease power consumption
<3>Special oven design helps power-saving and easy maintain

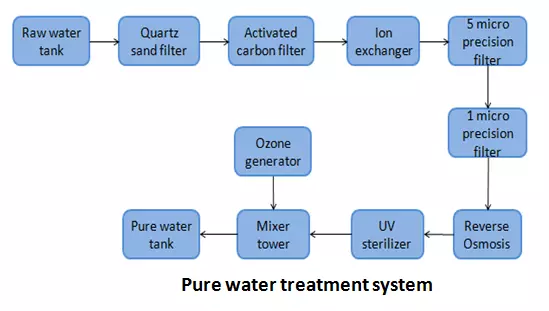

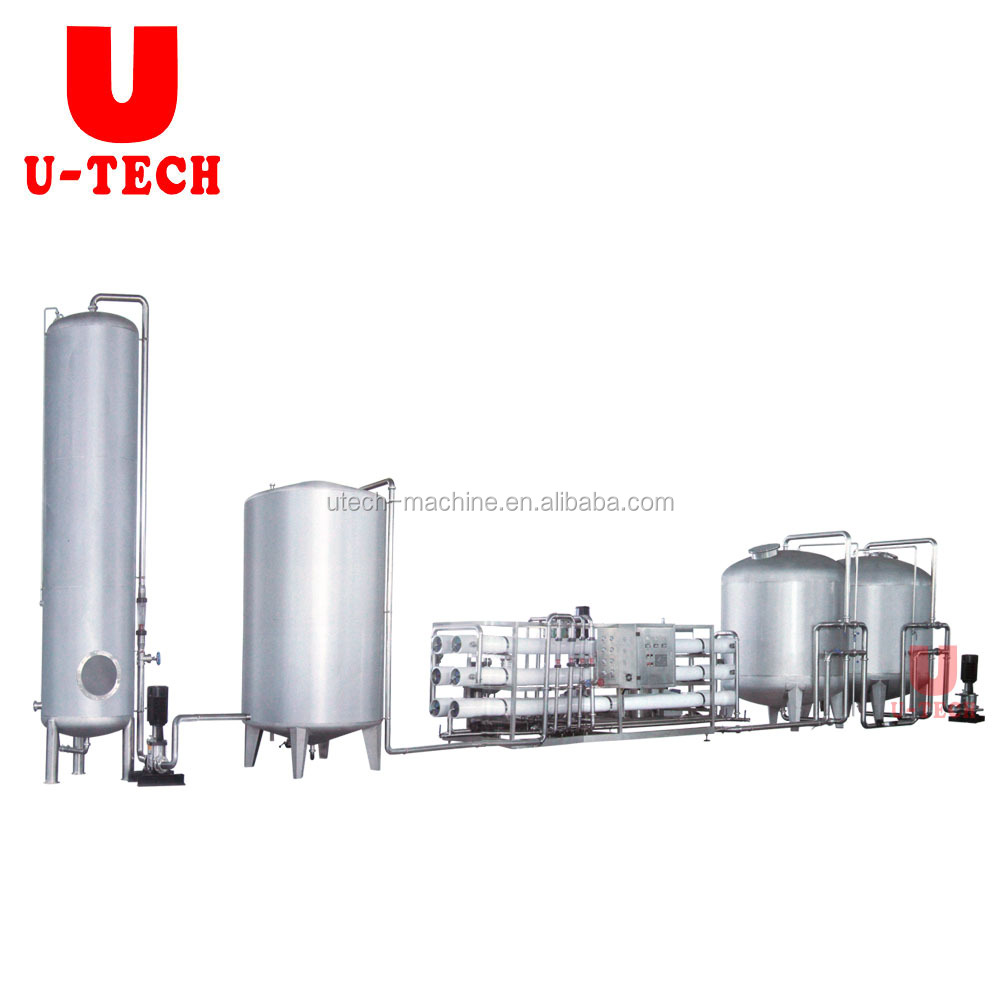

Water Treatment System
The most effective system of water technology, which is the use of ultra-thin film reverse osmosis membrane by water pressure

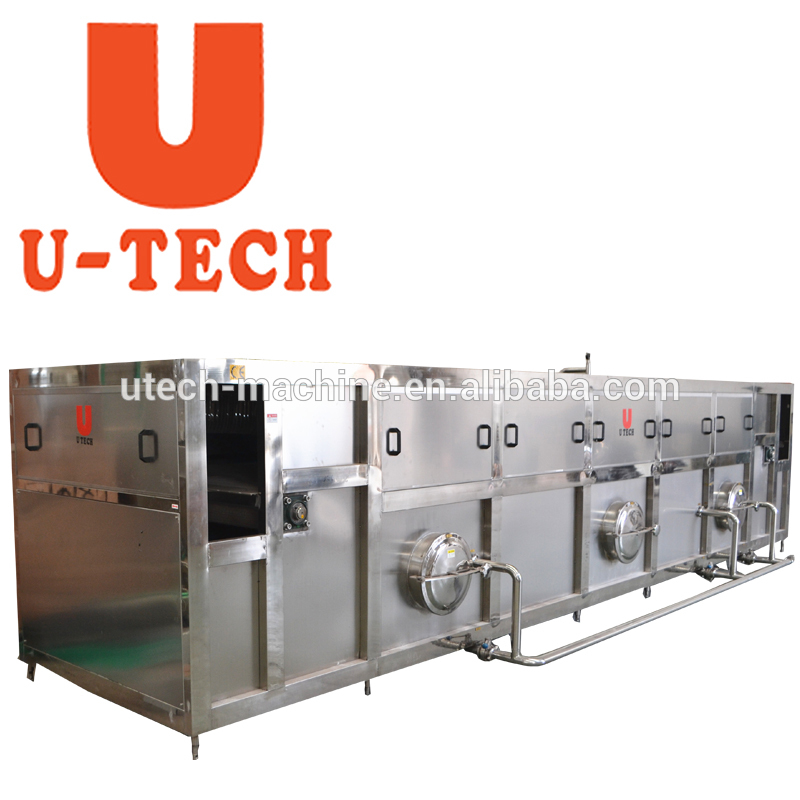

Bottle Warming Machine
This machine can increase the temperature of cold filling carbonated drinks to 36℃-40℃

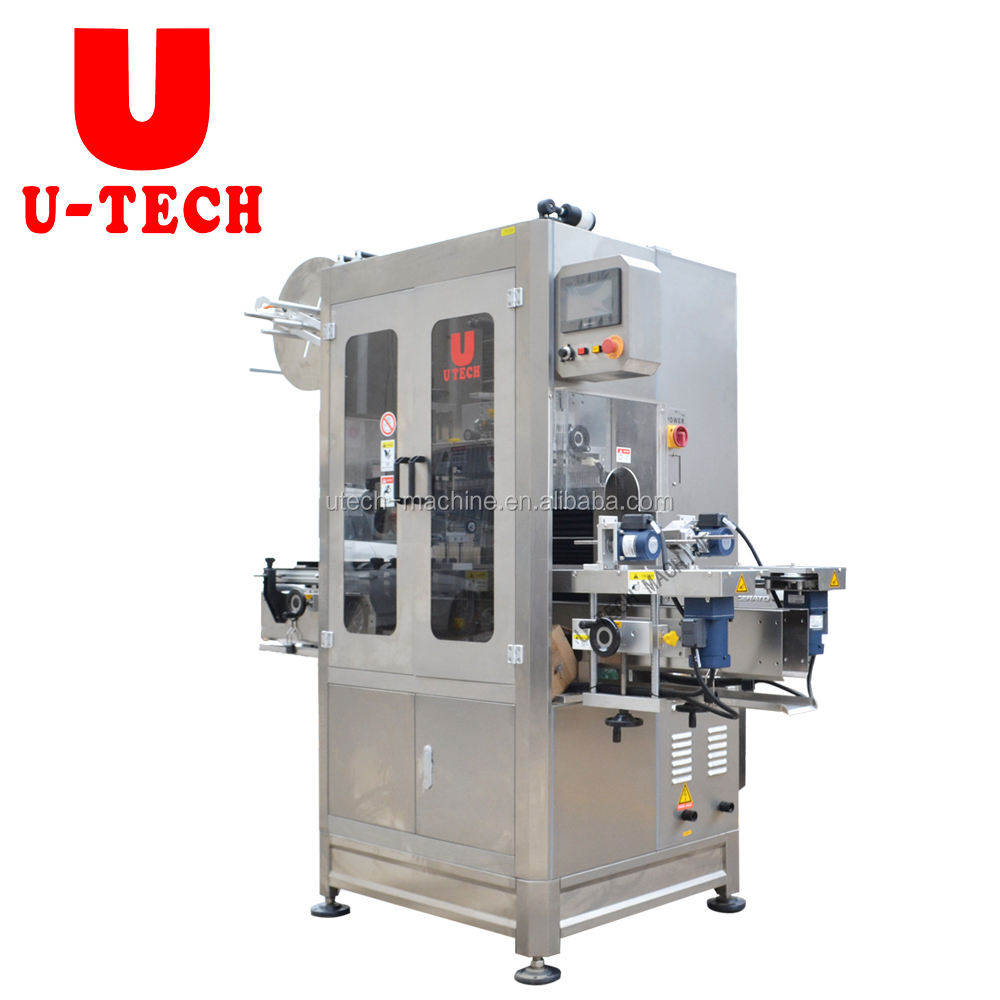

Double Station Shrink Sleeve Labeling Machine
It adopts double driving structure which is a new and advanced driving device for the thermal shrink sleeve machine
Automatic Shrink Packing Machine
To realize product conveying, combination, film wrapping, cutting, heat & shrink, cool and finally get the finished product
Q1: Do you have any reference project >> A1: We have reference project in most countries, and you can visit their factories if we get the permission of the customer
Q2: What's your guarantee or the warranty of the quality if we buy your machines
>>A2: We offer you high quality machines with 2 years guarantee, we will give u spare part free in 2 years
Q3: Do you provide customized service
>> A3: We will customize the machine according to your needs, material, power, filling type, the kinds of the bottles and so on
Q4: When can I get my machine after I paid
>> A4: We will deliver the machines on time as the date we agreed both side
Q5: How can I install my machine when it arrives
>> A5: We will send our engineer to your side as soon as you get all your machines ready, for testing and teaching your technicians how to run the machines
