The U Tech Automatic Small Scale Bottle Milk Coconut Water Natural Apple Fruit Juice Filling Machine Production Line is the clear answer ideal organizations trying to streamline their manufacturing procedure while increasing their production. This system revolutionary made to fill containers having an array of fluids, including milk, coconut water, normal apple juice, and juice, quickly and effortlessly, saving significant some time work

This revolutionary product has a stuffing sophisticated that guarantees accurate and consistent stuffing amount, reducing waste and minimizing wreak havoc on a user-friendly user interface and easy-to-use settings. The unit features a compact design, that makes it a simple task to put in and additionally saves space on to the floor valuable

The U Tech Automatic Small Scale Bottle Milk Coconut Water Natural Apple Fruit Juice Filling Machine Production Line can fill containers of varying sizes and shapes, making it perfect for companies by having a item range diverse. The machine’s custom enables you to personalize the rate filling to the nature of your respective item along with desired production. And considering that the product is manufactured away from top-notch materials and boasts craftsmanship superior you can depend on it for lasting and gratification dependable

This product has abilities that can be impressive enabling businesses to fill to 3000 containers of juice or other fluid each hour. This means that organizations can very quickly satisfy sales and effectively to fulfill client need and boost their important things

One function fantastic of U Tech Automatic Small Scale Bottle Milk Coconut Water Natural Apple Fruit Juice Filling Machine Production Line is the known undeniable fact that it is possible to keep, clean, and troubleshoot. Troubleshooting and repairing any problem is manufactured easier due to its smart control system, which guarantees uptime maximum downtime minimal. This particular feature eventually saves you cash and time

Finally, the price tag on the U Tech Automatic Small Scale Bottle Milk Coconut Water Natural Apple Fruit Juice Filling Machine Production Line is competitive, which makes it a investment good is very good companies buying a top-notch stuffing line which will help develop their important thing

This product is simply a device high-performing delivers efficient and consistent stuffing of milk, coconut water, normal apple juice, and juice. It really is user-friendly, easy to keep and troubleshoot, while offering organizations with diverse stuffing requires the flexible to fill containers of most size and shapes, saving both right time and work. Buying this type of device top-notch help you save money in the long run while delivering superior outcomes. Obtain the U Tech Automatic Small Scale Bottle Milk Coconut Water Natural Apple Fruit Juice Filling Machine Production Line for your needs today

Description

RCGF series juice filling line is used to produce PET bottled juice within the volume from 200ml to 2000ml different models can satisfy various requirement of output from 1500B/H to 25000B/H this machine incorporates ringsing, filling and capping into one kind of full-automatic equipment. It is suitable for producing PET and Plastic bottled juice and tea. The method of filling adopts hot filling. The equipment is fitted with advanced Mitshbishi PLC to control the operation and cooperated by frequency converter of the main motor. it makes the operation more stable and reliable the photoelectric sensor is used to detect operating conditions of each section, which makes the operation of this equipment highly automatic and convenient

Flow

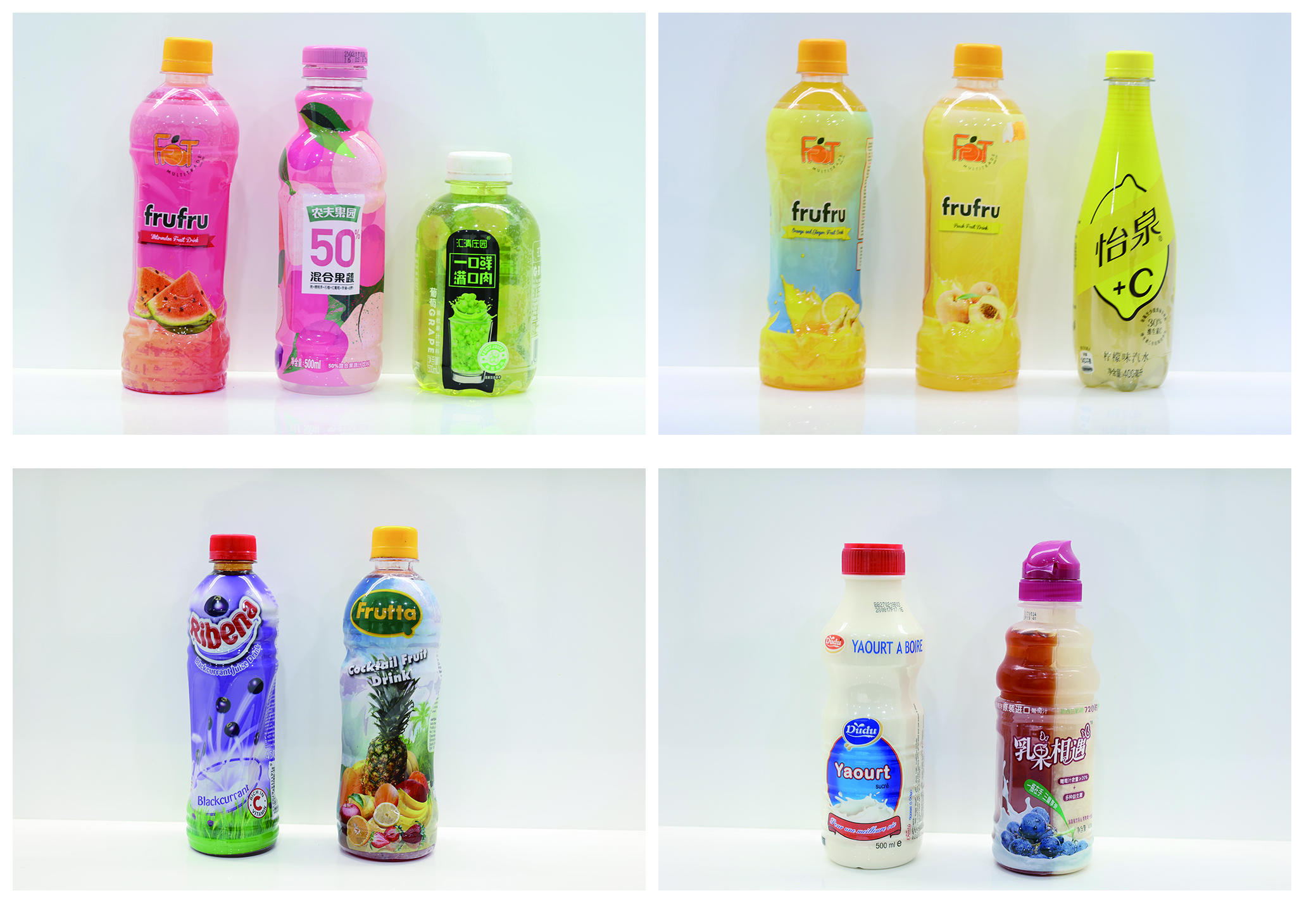

Sample

Technical Parameters

Model	RCGF8-8-3	RCGF14-12-5	RCGF16-16-5	RCGF24-24-6	RCGF32-32-8	RCGF40-40-10
capacity BPH	1500 500ML	4000 500ML	5500 500ML	8000 500ML	10000 500ML	14000 500ML
washing heads	8	14	16	24	32	40
filling  heads	8	12	16	24	32	40
capping heads	3	5	5	6	8	10
suitable bottle	PET bottle plastic bottle
Diameter of bottle	55-100mm
height of bottle	150-300mm
suitable cap	Plastic screw cap
weight(kg)	1500	2000	3000	5000	7000	7800
main motor power(kw)	1.2	1.5	2.2	2.2	3	5.5

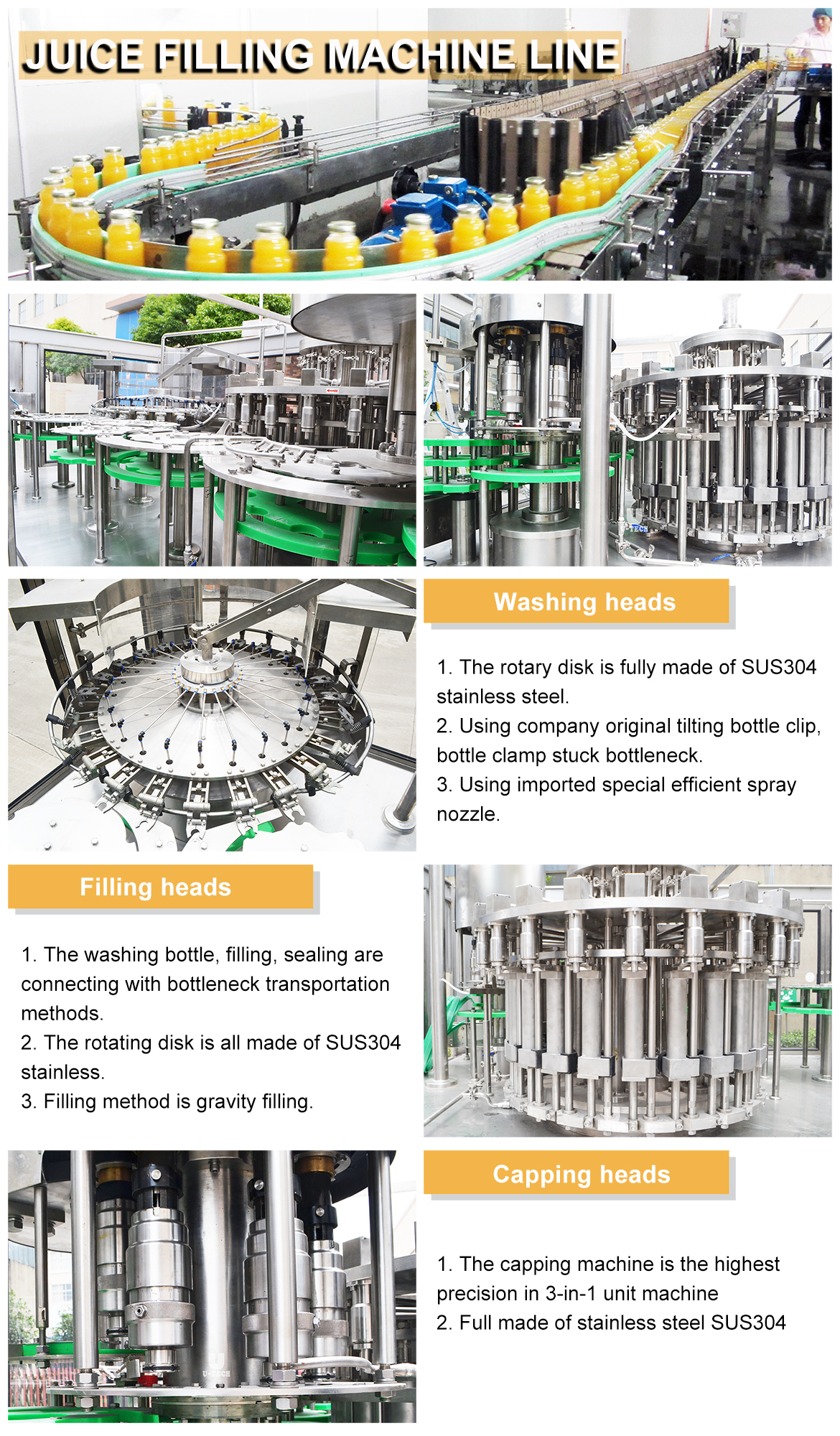

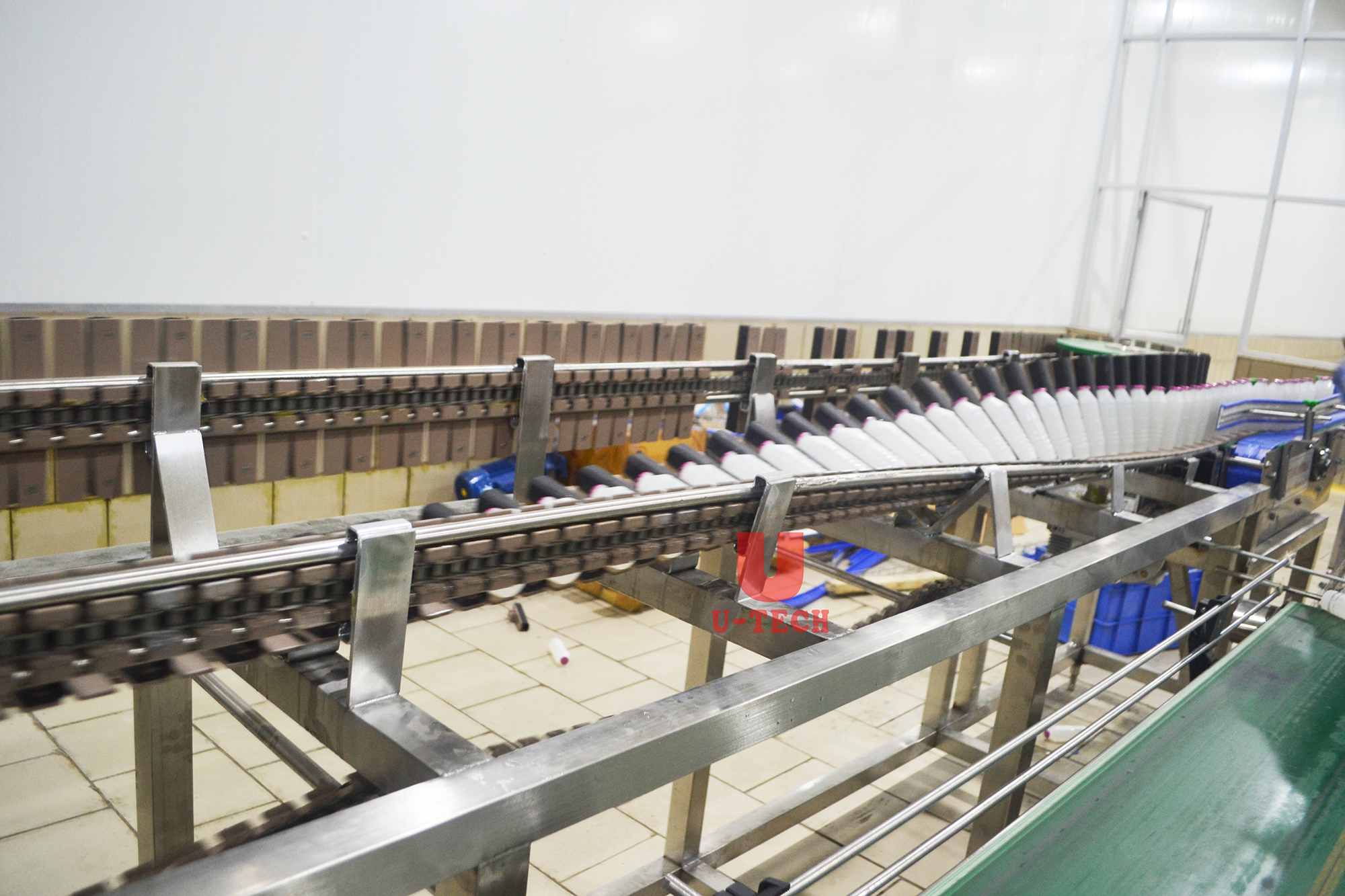

Machine Details

Control System

S/N	Name	Brand	Country
1	Main motor	ABB	Switzerland
2	Inverter	MITSUBISHI	Japan
3	PLC	OMRON	Japan
4	Touch screen	MITSUBISHI	Japan
5	Contactor	SCHNEIDER	France
6	Thermo- relay	SCHNEIDER	France
7	Air-break switch	SCHNEIDER	France
8	Proximity switch	TURCK	USA
9	Photoelectric switch	BANNER	USA
10	Air circuit system	SMC	Japan
11	Water pump	Southern	China

Related Products

Water Treatment System

The water treatment equipment includes silica sand filter, active carbon filter, sodium-ion exchanger, precision filter, reverse osmosis, hollow fiber filter, ozone generator, ozone mixing tower and water tank, etc

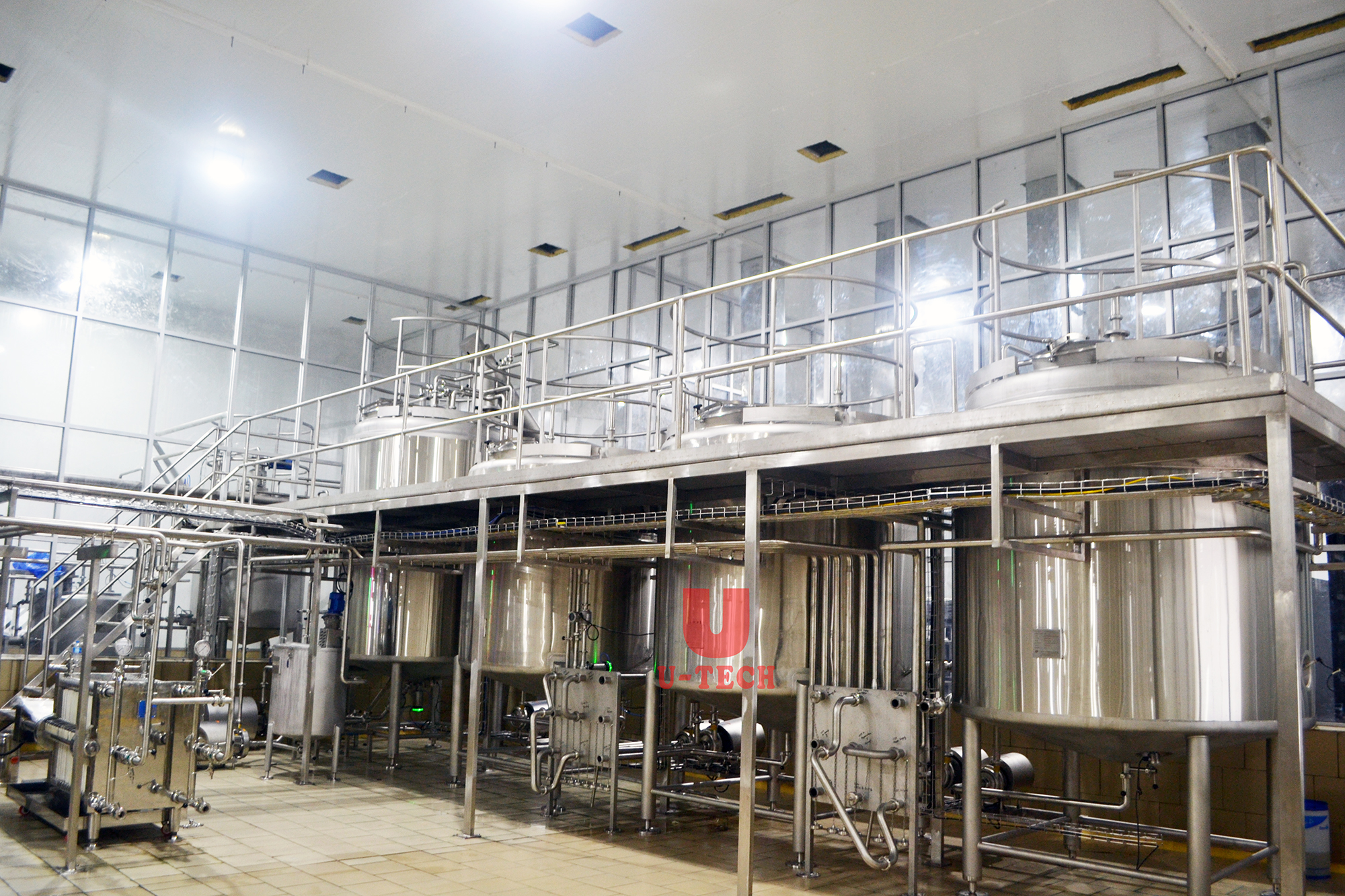

Blending system

The system include: sugar melting, syrup filter, syrup storage tank, diatomaceous filter, Mixing tank, hot water storage tank, homogenizer, vacuum de-aerator machine (degassing system), ultra-high temperature sterilizer and CIP

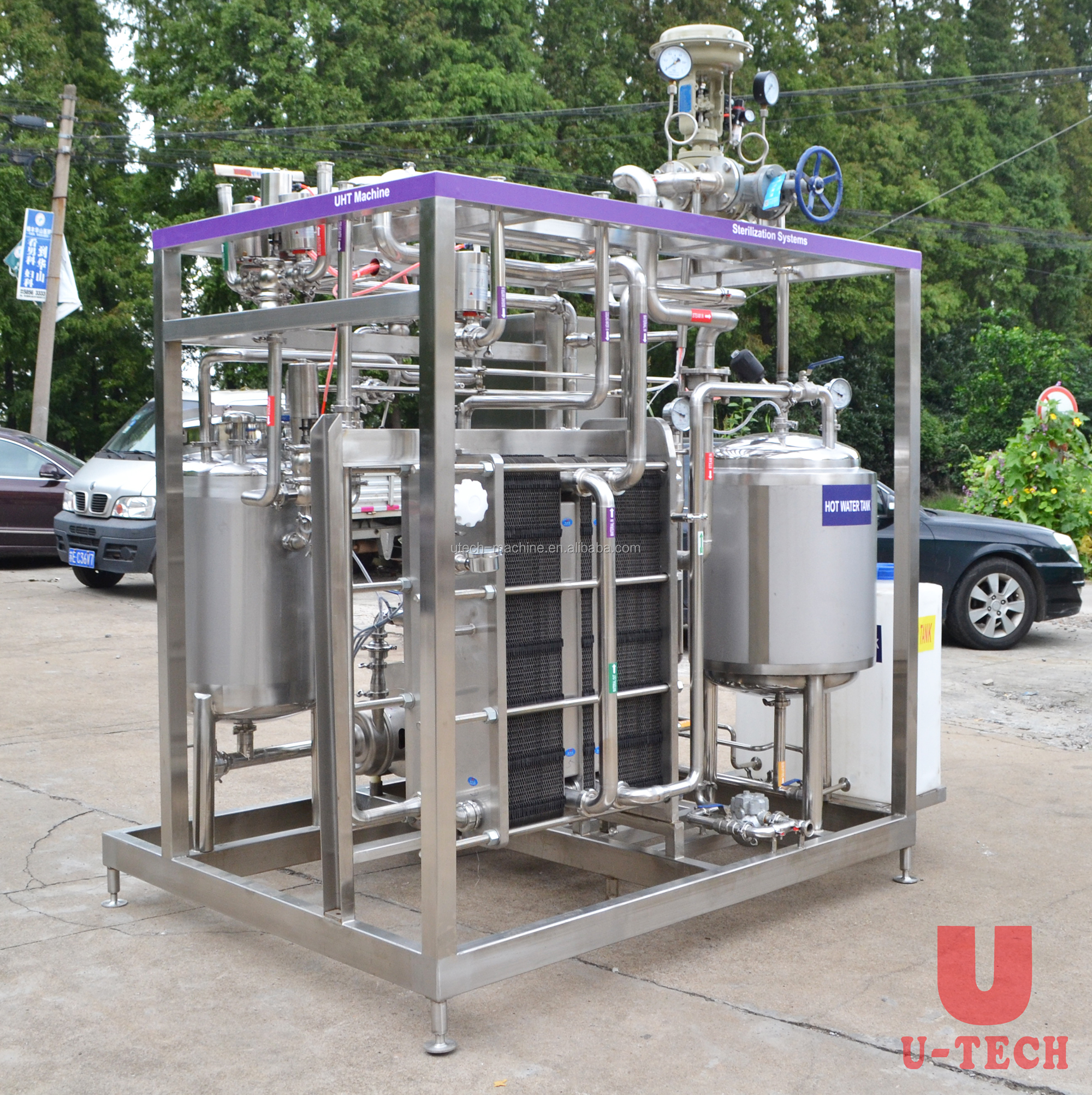

UHT sterilizer

UHT Plate type Sterilizer is PLC controlled, with optional capacity from 1t/hr to 15t/hr The system work in aseptic section and normal section, for the technical require-ments of filling at low temperature, normal temperature and high temperature

CIP Cleaning

CIP is specially designed for the clean-up of beverage production line and filling equipment, with three cleaning sections of acid, alkali and heated water

Bottle Inverse Sterilizer Machine

It is mainly used in sterilizing pet bottle mouth and inside surface of caps. In which has not been disinfected by hot tea, Fruit Juice which having been filled in pet bottle

Colling Machine

This machine can reduce the temperature of hot filling drinks to 36°C-40°C. It is used in carbonated hot tea drinks, juice drinks and litchi juice production line

Dryer

Using high pressure air ventilation, so that high-speed air flow ejected from a slit, the remaining drops of water bottles as much

as possible the body blow it away Inclination of the slit so that the entire side of the bottle can be high-speed air-blown The bottle dryer consists of the high pressure air fan, pressure tank, inflatable tube, rack, control devices, and other components

Laser printer

Laser marking machines handle nearly every industrial marking and DPM (Direct Part Marking) task. Metals, plastics, ceramics, glass etc. are processed efficiently and contact-free. All desired contents are applied repeatedly accurate and reliably: 2D, DMC and alphanumeric codes, simple serial numbers, complex logos, graphics, structures. Depending on the material and application task, the process is laser marking, engraving or deep engraving

Sleeve Labeling Machine

This machine adopts international advanced technology; cover the circle label on the pet bottle. And then hot shrinking to fix on the position which bottle body designated. This machine's structure is compact, and suitable for the production line of different direction and different height. The machinery part adopts combination designing of modularization, and makes the machine reasonable

Shrink Packing Machine

The machine is suitable for wrapping of such products as pop top, mineral water, bottles. beer, drinks etc. Working with PE film shrink tunnel to pack the goods perfectly, the whole production process adopts the Germany advanced technics, and the main parts are imported from international famous companies. It consists of seven actuating motor, through cooperation with 7 actuating motor to form the product packed with plastic film and several bottles as a group out from the hot shrinking packing machine

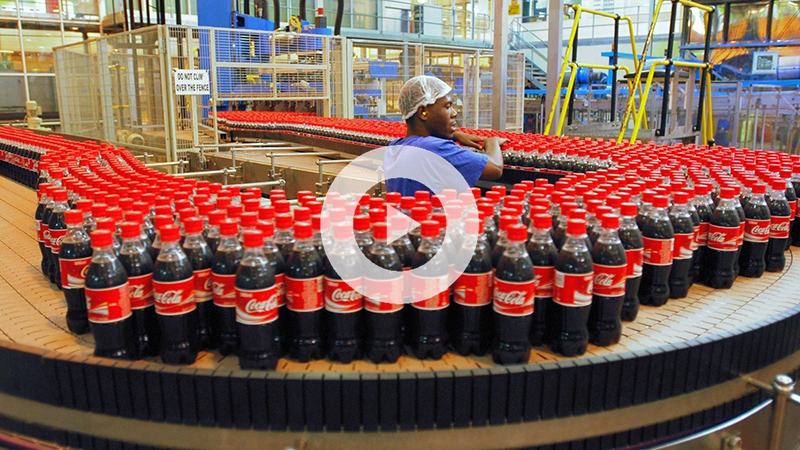

Machine Running Video

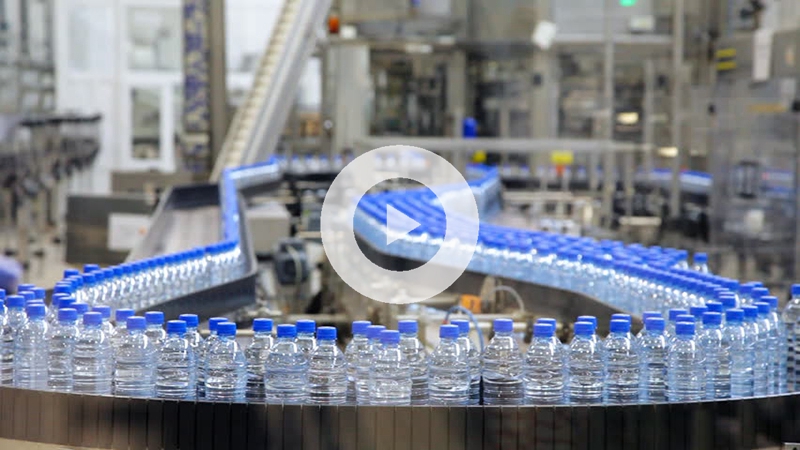

Water filling machine

Soda water filling machine

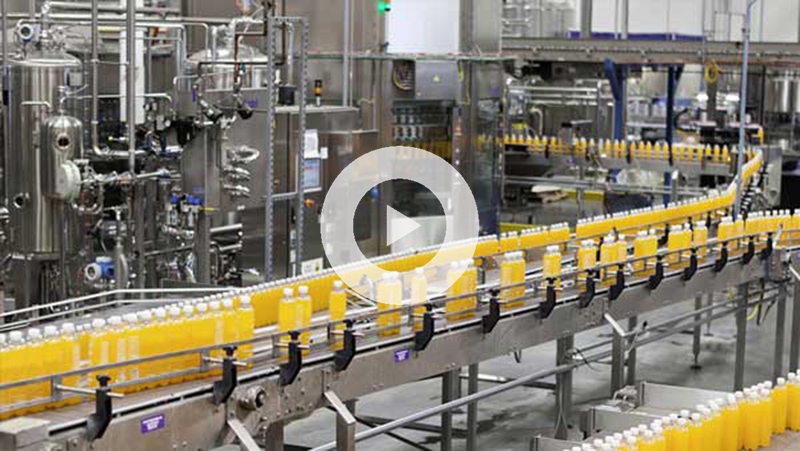

Juice filling machine

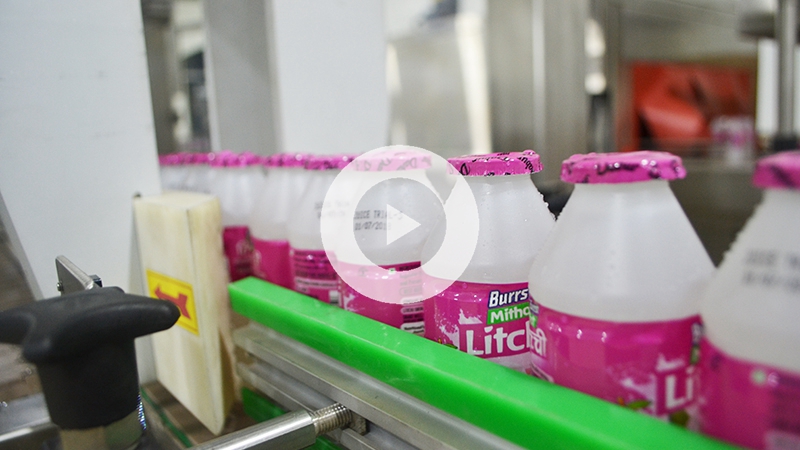

Litchi juice filling machine

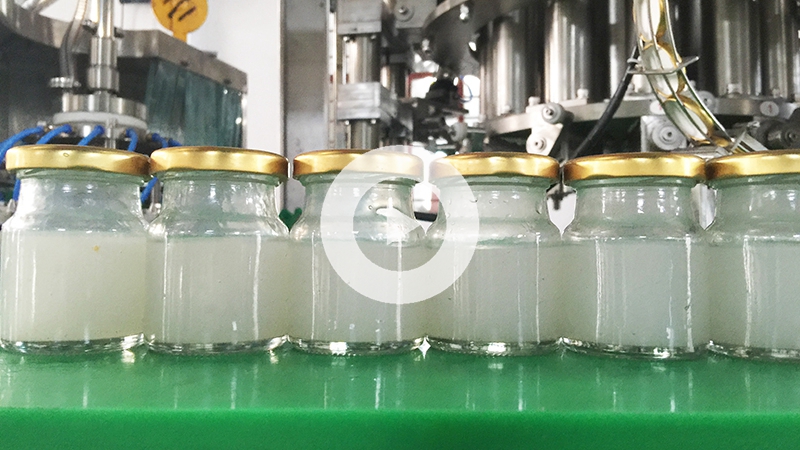

Bird nest filling machine

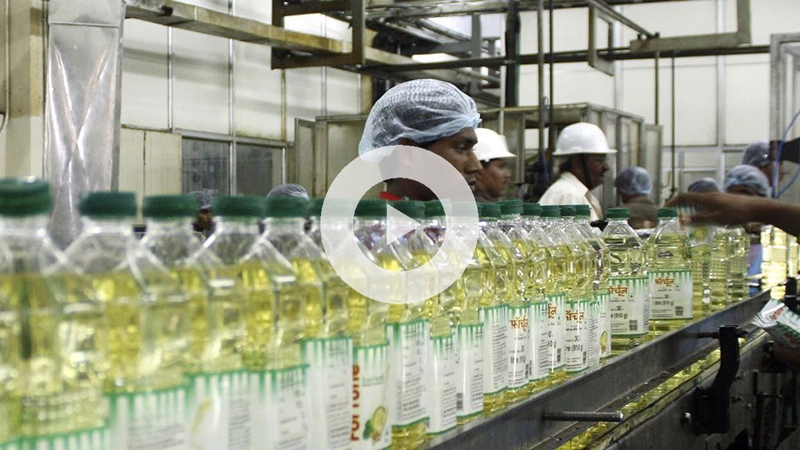

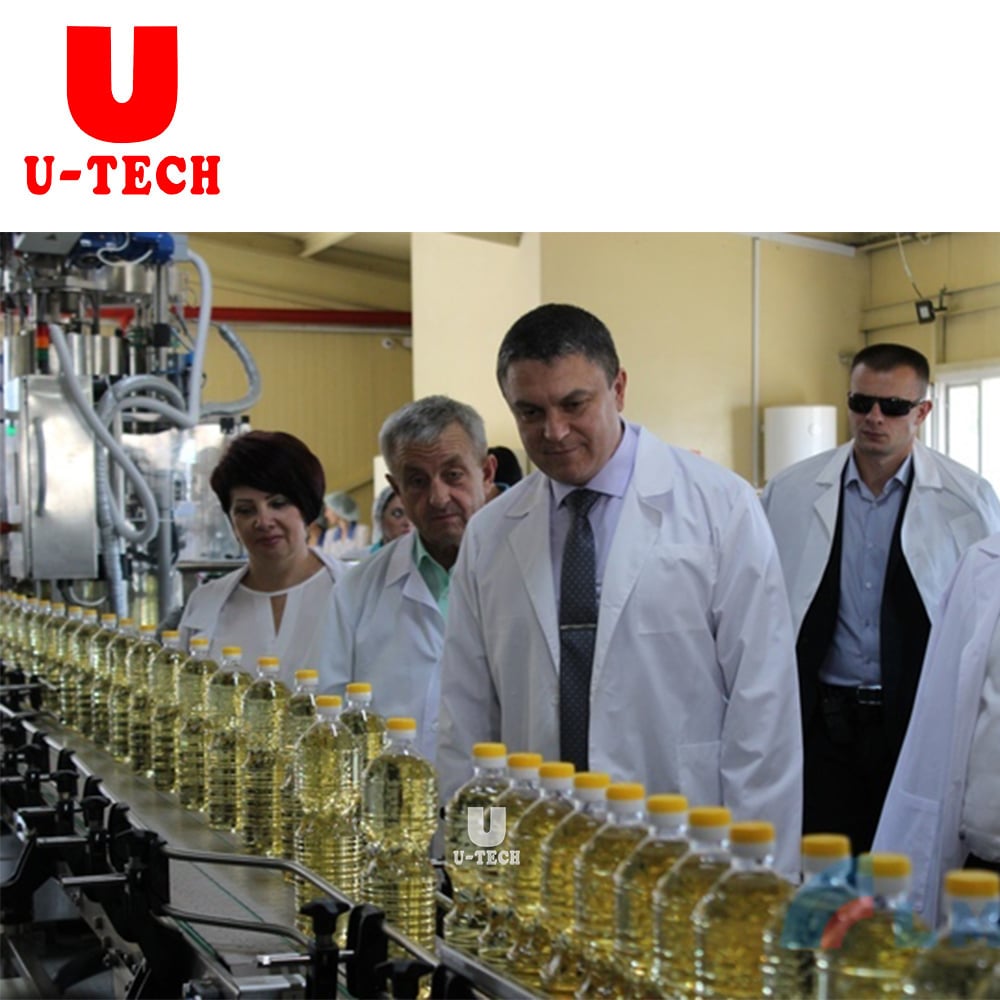

Oil filling machine

About U TECH

Zhangjiagang U Tech Machine Co., Ltd. is a manufacturer of filling machine and packing with well-equipped testing facilities and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in beverage and other packing equipment

Our products include: liquid filling machines (water, fruit juice/tea, carbonated drink, oil, alcohol, plant protein drink, etc.), barreled filling line (3-5 gallon) water treatment machines, labeling & packing machines, semi-automatic /full automatic PET bottle blowing machines, and injection molding machines, extrusion blow molding machines (PP/PE/PVC/PETG/PC) and accessories for automation: leak tester machines, bottle bag packing machines, conveyor belts

Our client

Cooperative brand

FAQ

Q1:Do you have any reference project

A1:We have reference project in most countries, and you can visit their factories if we get the permission of the customer

Q2:What's your guarantee or the warranty of the quality if we buy your machines

A2:We offer you high quality machines with 2 years guarantee. we will give u spare part free in 2 years

Q3: Do you provide customized service

A3: We will customize the machine according to your needs, material, power, filling type, the kinds of the bottles and so on

Q4:When can I get my machine after I paid

A4:We will deliver the machines on time as the date we agreed both side

Q5:How can I install my machine when it arrives

A5:We will send our engineer to your side as soon as you get all your machines ready, for testing and teaching your technicians how to run the machines
