U Tech’s Automatic Complete 19-20 Liter Bucket Barrel Bottle 20L 5gallon Water Filling Machine Line Plant is the ideal solution for small to medium water filling organizations. This method was created to suit all the requirements of a small to to medium size company that are looking for to start filling and packaging water right away in a simple and economical way.

Fashioned with attention and accuracy on detail, this Water Filling Machine Line Plant supplies a complete filling for 19-20 liter buckets, barrels, containers plus much more. This lightweight and easily-maintainable device is capable of filling water at a competent rate, making sure you'll meet with the needs of your clients in a fast and economical manner.

Created using state-of-the-art technology, this Water Filling Machine Line Plant is sold with an automated container washing, filling, and capping system. This provides an immediately managed process that removes any problems. This guarantees a top level of precision and persistence to the water filling procedure whilst on top of saving effort and time for operators.

The Water Filling Machine Line Plant is sold with a selection of features which makes it a perfect choice for companies of all of the sizes. THis is not difficult to work, and a single operator can handle the entire procedure, from filling and capping to washing and sterilizing. The unit is sold with a approach self-cleaning which guarantees greater effectiveness and reduced maintenance expenses.

The Water Filling Machine Line Plant was also fashioned with a security alarm system, which alerts the operator in case there are any malfunctions, preventing any problems on your goods or device.

The U Tech’s Automatic Complete 19-20 Liter Bucket Barrel Bottle 20L 5gallon Water Filling Machine Line Plant provides the ideal solution to small scale water filling operations. It is a competent, dependable, and economical device that is simple and a hassle-free option that can meet with the needs of your clients. If you're buying an item that will offer you constant and accurate water filling, look no further than U Tech’s Automatic Complete 19-20 Liter Bucket Barrel Bottle 20L 5gallon Water Filling Machine Line Plant

Description

QGF type barreled water producing line is the core equipment in the 5 Gallon barreled drinking water producing line. It is the
ideal equipment for mineral water, distilled water and purified water producing process. The machine is made of excellent
stainless steel with the advantage of easily-rinsing and corruption-resistance. The main electrical parts adopt products with
brand of SIEMENS and OMRON. Pneumatic parts adopt products with brand of AIRTAC. Both the inner and outer shower nozzle for washing barrel adopt the special technology equipment from American sprayer company. The machine works reliably and efficiently based on the compact structure and high automatic technology. It is the fully automatic barreled water producing equipment combined with machine, electronic and pneumatic components

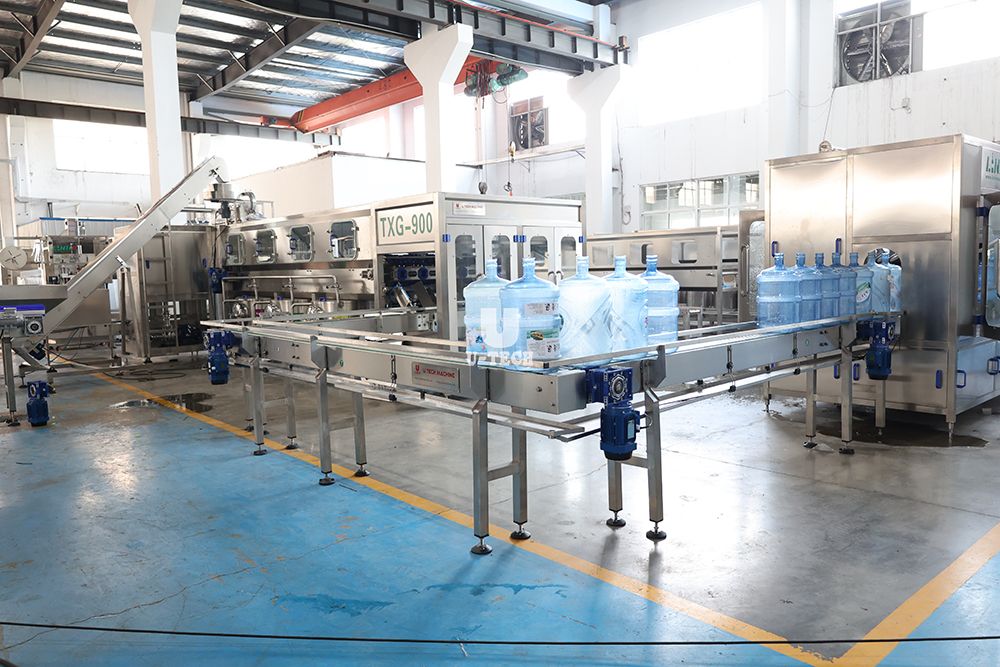

Machine Details

Rinsing Part

<1> All 304/316stainless steel rinsing heads, water spray style inject design, more save water consumption and more clean
<2> 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
<3> 304/316 stainless steel washing pump

Filling heads

<1> 304/316 Stainless steel high precision filling nozzle
<2> Filling volume adjustable in fine rank, same liquid level after filling
<3> All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
<4> 304/316 stainless steel filling pump

Capping heads

<1> Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
<2> All 304/316 stainless steel construction
<3> No bottle no capping
<4> Automatic stop when lack of bottle

Main Features

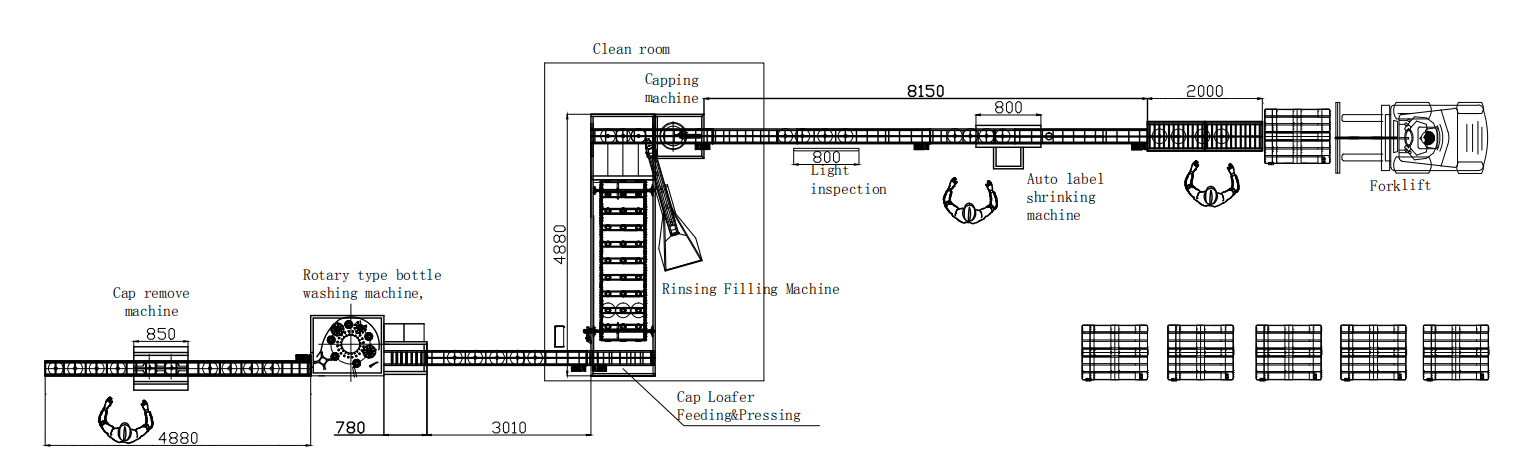

1. The 5 Gallon Filling Machine is composed of barrel washer, barrel filling machine and barrel sealer into one unit.

2. Especially for filling drinking water of 3 and 5 gallons. It is an idea filling line to produce mineral water, distilled water and purified water

3. The whole line is made of superior stainless steel, anti-corrosive and easy to clean.

4. Only two operators are needed for a line, which is wholly automatic barreled

5. Full-auto or semi-auto barrel de-capper, full-auto leakage inspection, full-auto barrel

Control System

S/N	Name	Brand	Country
1	Main motor	ABB	Switzerland
2	Inverter	MITSUBISHI	Japan
3	PLC	OMRON	Japan
4	Touch screen	MITSUBISHI	Japan
5	Contactor	SCHNEIDER	France
6	Thermo- relay	SCHNEIDER	France
7	Air-break switch	SCHNEIDER	France
8	Proximity switch	TURCK	USA
9	Photoelectric switch	BANNER	USA
10	Air circuit system	SMC	Japan
11	Water pump	Southern	China

Related Products

200ml-2L bottle filling line

5-10L bottle filling line

20L bottle filling line

.

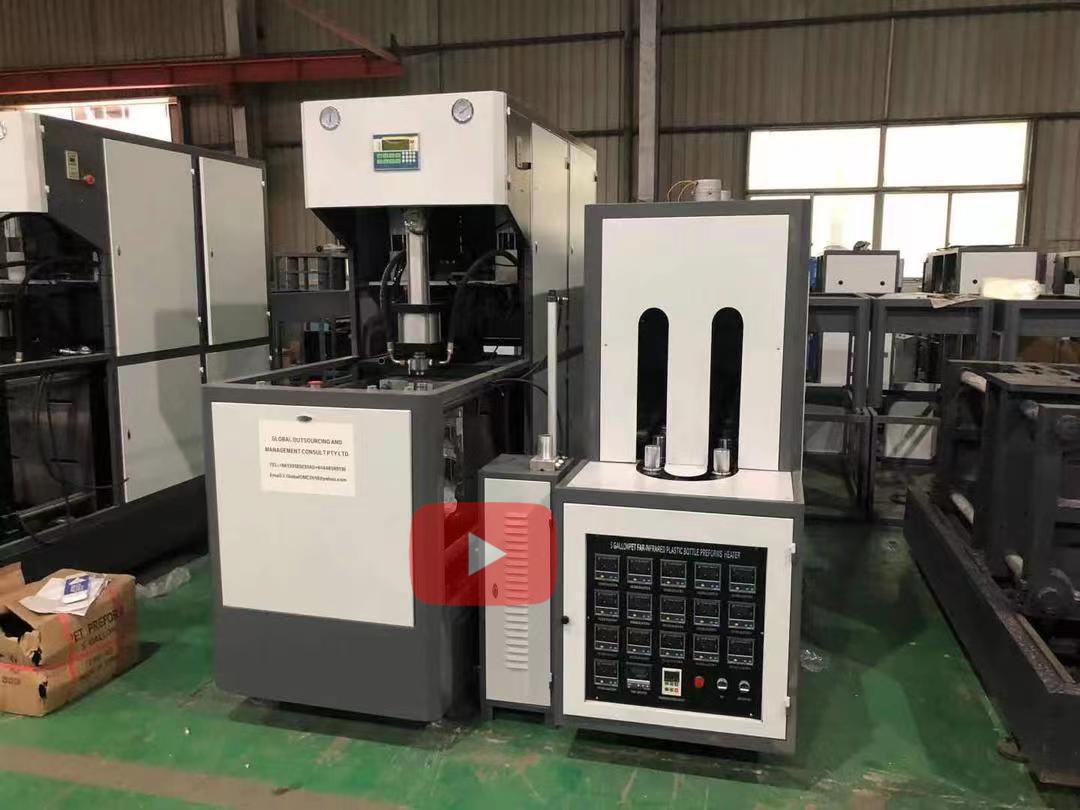

5 gallon bottle blowing machine

water treatment system/ water purifier

About U TECH

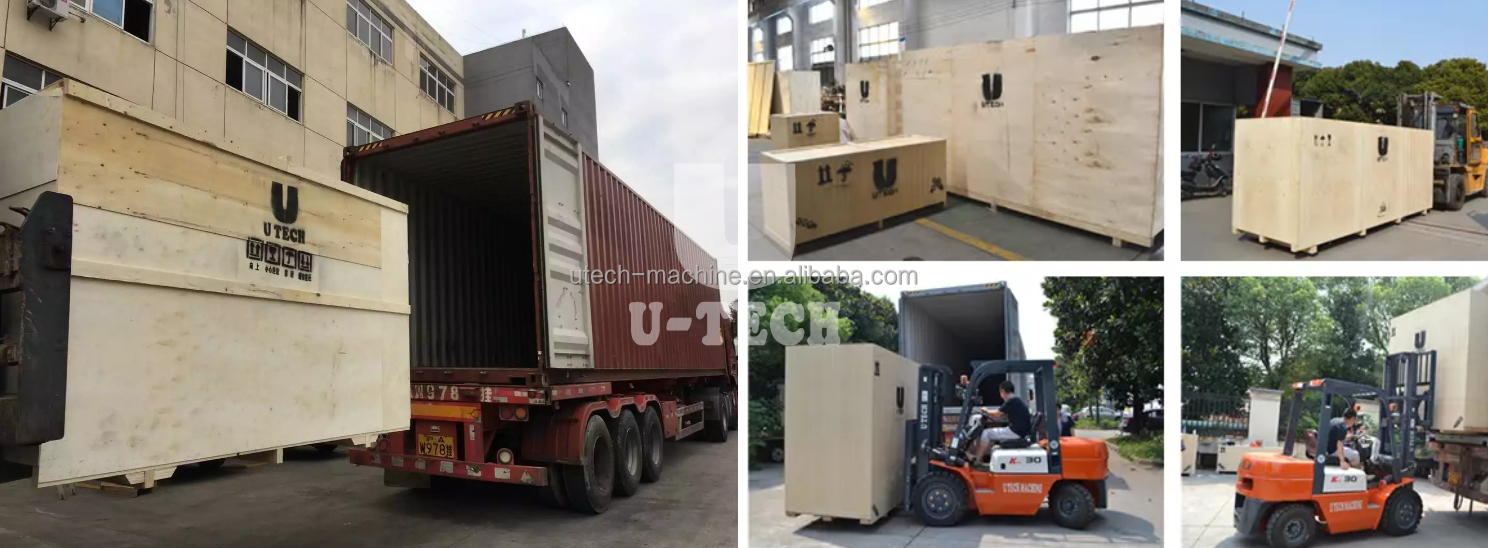

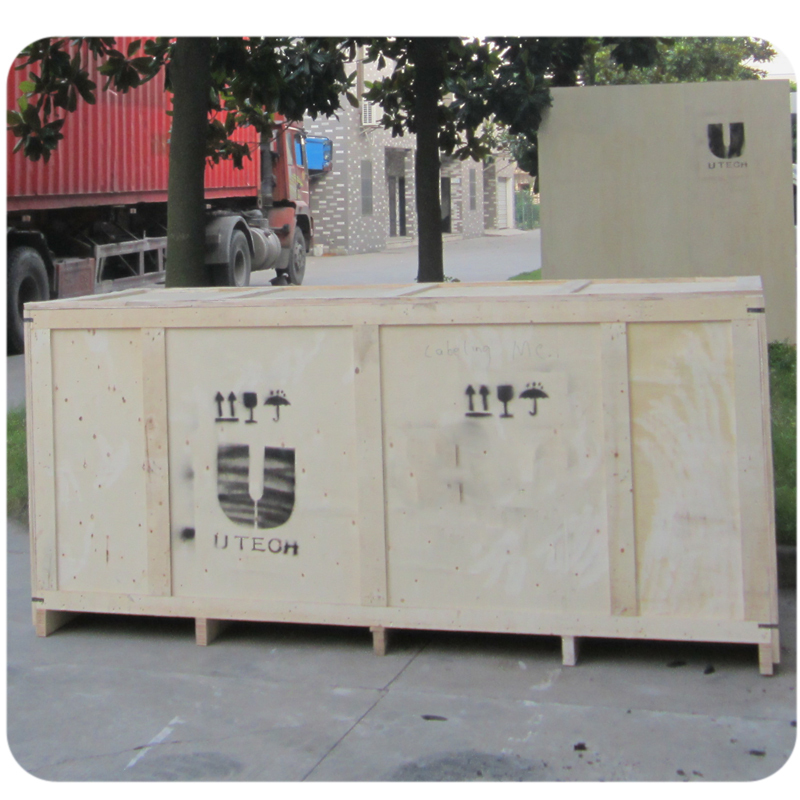

Package and Delivery

Certifications

FAQ

Q1:Do you have any reference project?

  >> A1:We have reference project in most countries, and you can visit their factories if we get the permission of the customer

Q2:What's your guarantee or the warranty of the quality if we buy your machines?

  >>A2:We offer you high quality machines with 2 years guarantee. we will give u spare part free in 2 years

Q3: Do you provide customized service?

    >> A3: We will customize the machine according to your needs, material, power, filling type, the kinds of the bottles and so on

Q4:When can I get my machine after I paid?

    >> A4:We will deliver the machines on time as the date we agreed both side

Q5:How can I install my machine when it arrives?

    >> A5:We will send our engineer to your side as soon as you get all your machines ready, for testing and teaching your technicians how to run the machines
