Introduction

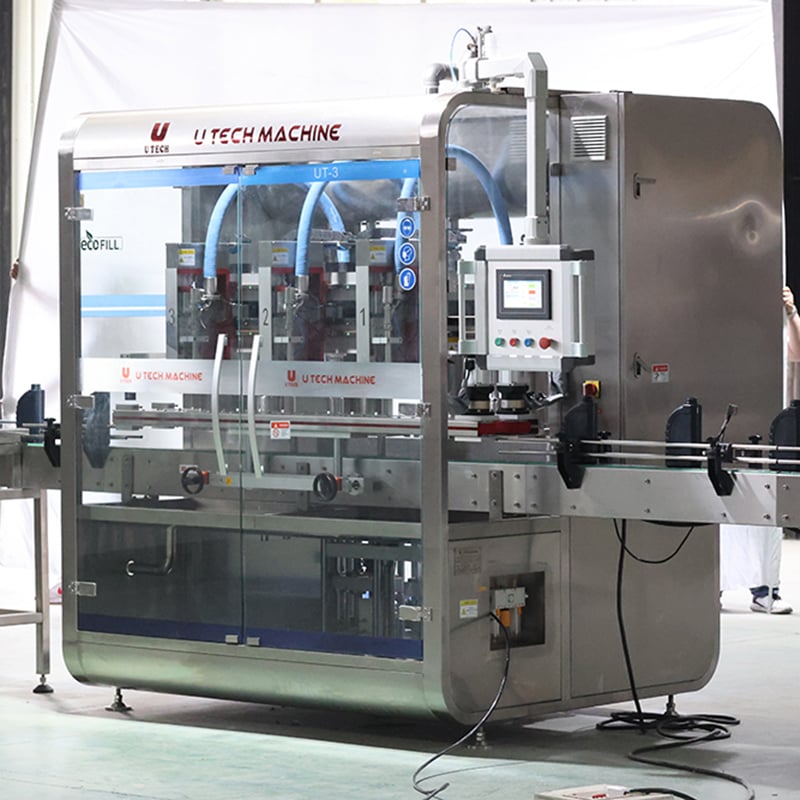

This UT series automatic edible food oil filling machine for bottle adopts serve ball-screw system to drive the piston cylinder.It's widely used in Food, Chemical, Medical, Cosmetics, Agrochemical industry, applicable for filling liquid, especially for high viscosity material and foamy liquid, such as: Oil, Sauce, Ketchup, Honey, Shampoo, Lotion Lubricant oil, etc. And it is suitable for barrels, jars and bottles of different sizes, shapes and volumes.
Machine details

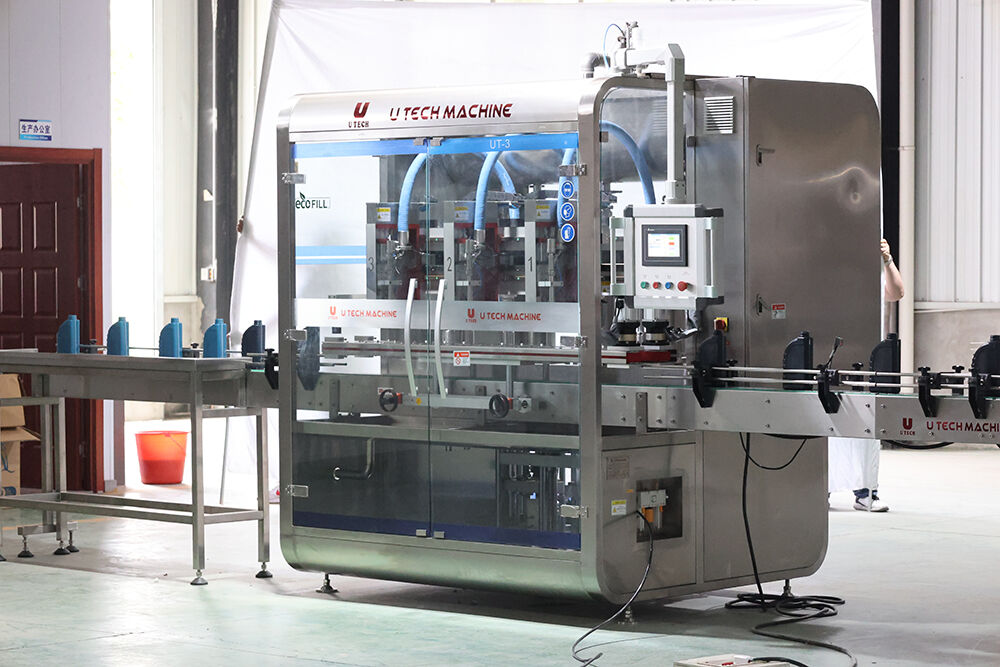

Servo filling part
This machine is equipped with servo motor and you just need to enter the certain number to adjust filling range.Compared with other filling machine,this tracking type filling machine can control filling nozzle follow moving bottles during filling work.It reduce production error and improve filling accuractely.It is designed for filling paste like curry paste,tomato sauce,pepper sauce,each nozzle can be controlled separately.

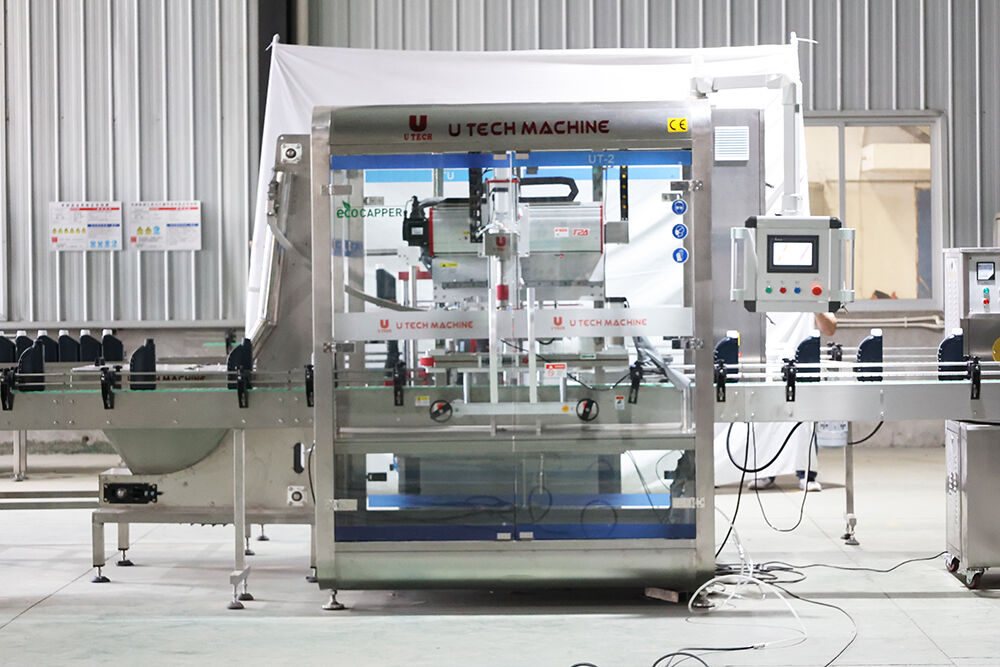

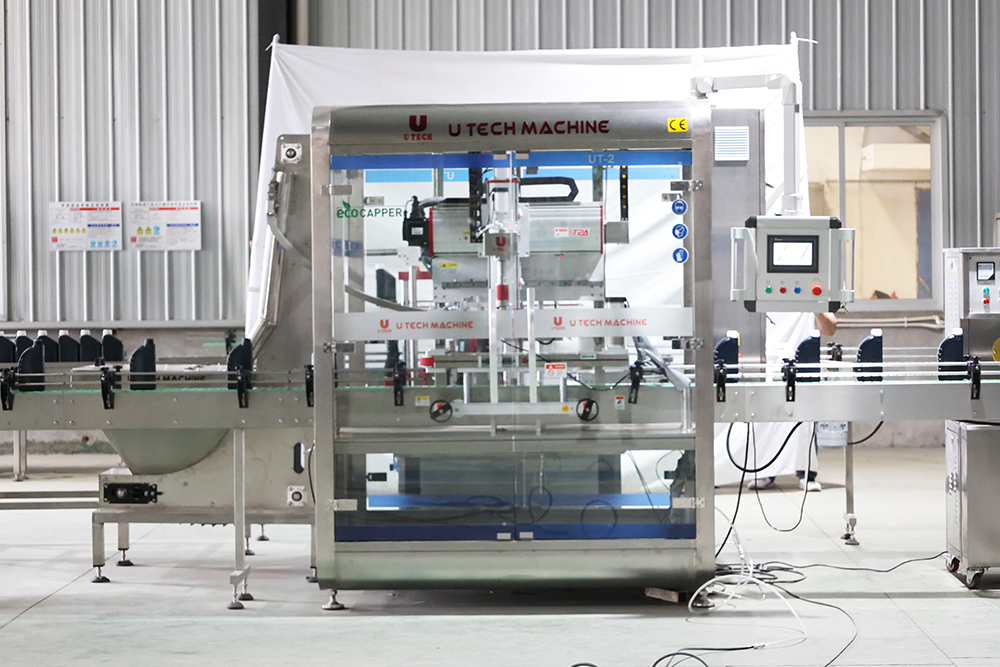

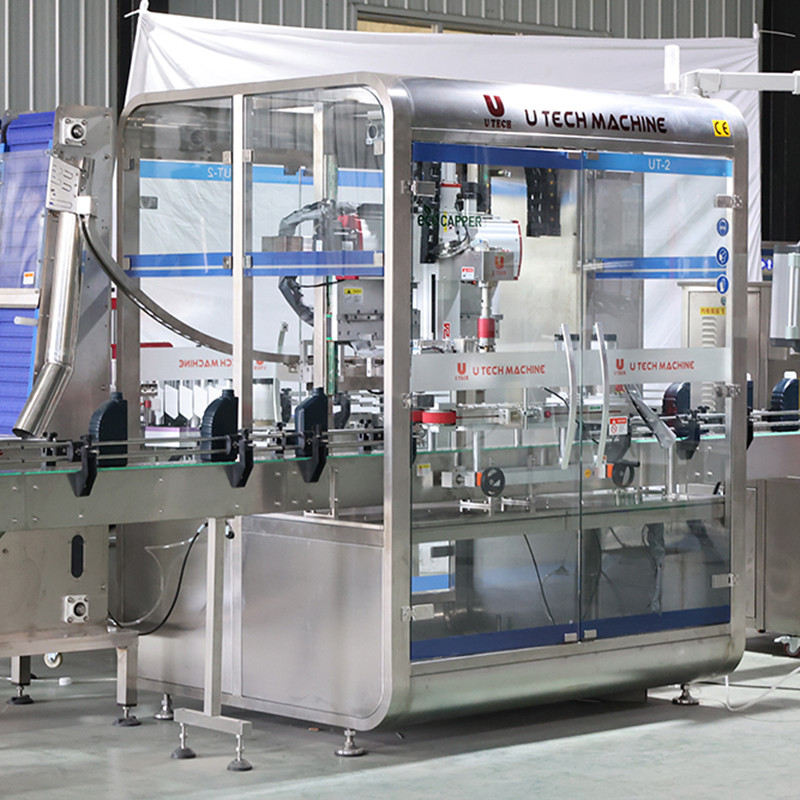

Servo capping part
The servo capping machine sorts the caps which are individually picked up by the mechanical swing arm and moved to the chuck head while containers are stabilized by the pneumatic bottle gripping assembly. after the chuck head applies appropriate torque to the cap, the container moves down conveyor.

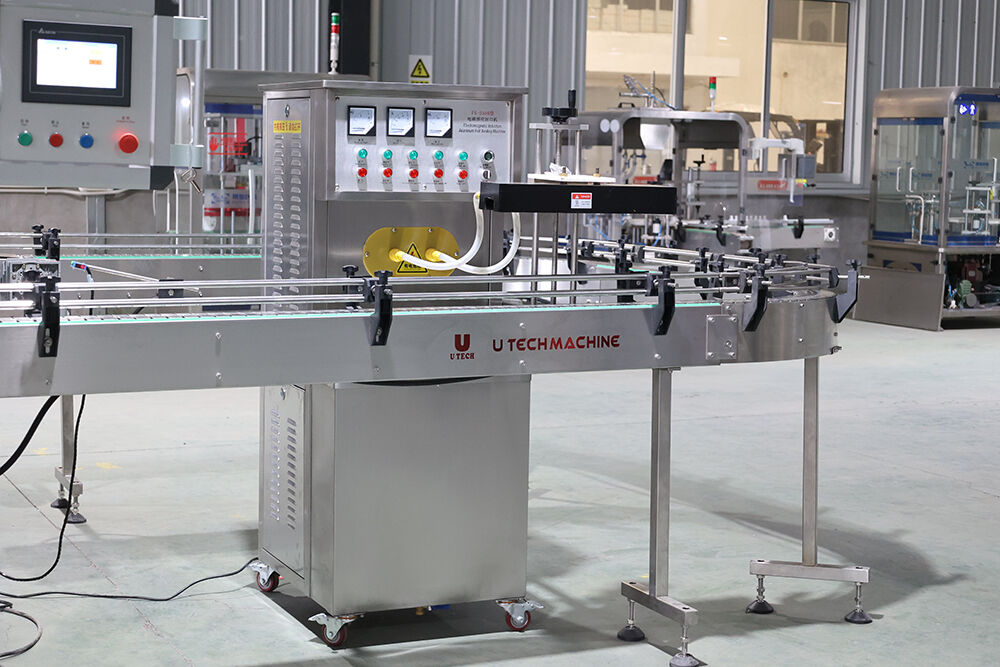

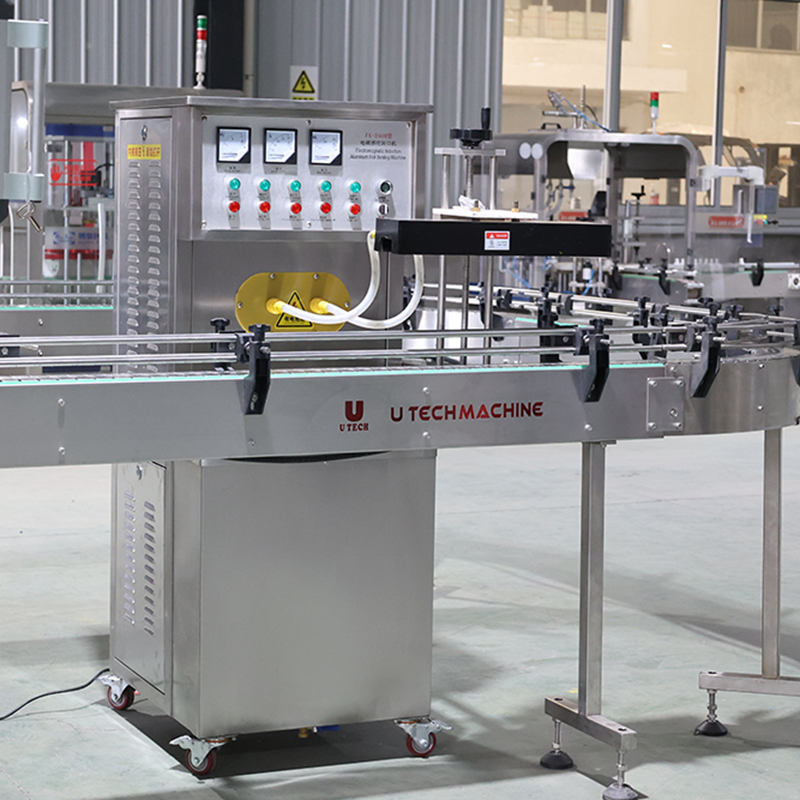

Aluminum foil sealing machine
The machine uses electromagnetism to generate eddy current magnetic field when contacting with metal substances to achieve the purpose of instantaneous heating and magnetic heat transformation of metal substances, Aluminum Foil Sealing Machine Plastic Bottle Electric Sealing Machine is widely used for fuel additives, pharmaceutical bottles, rotating drinks, honey jars, yogurt bottles, chili sauce, cosmetics, daily necessities, etc.

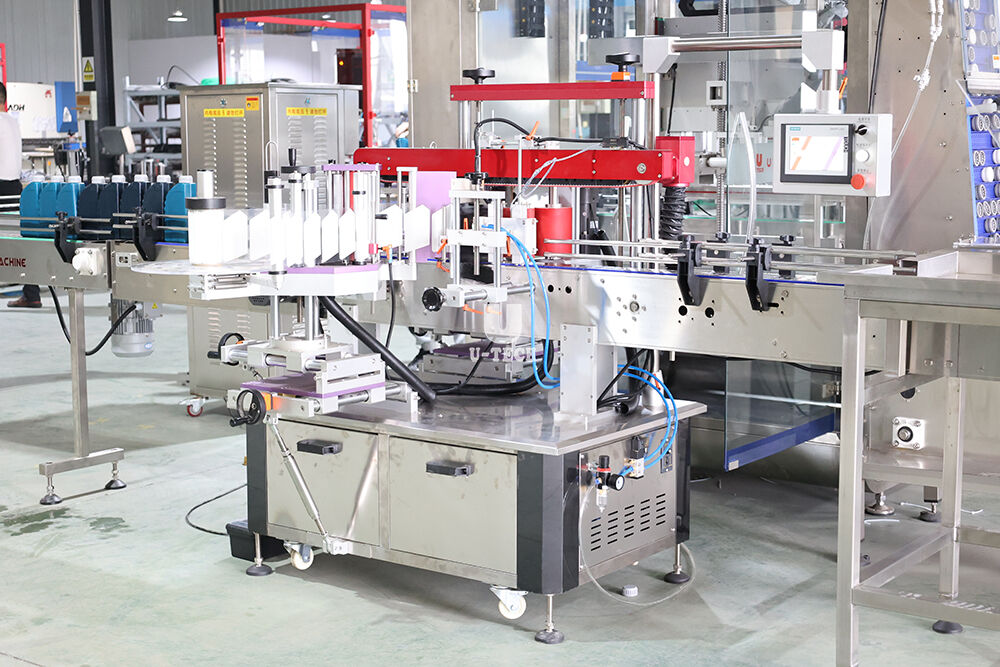

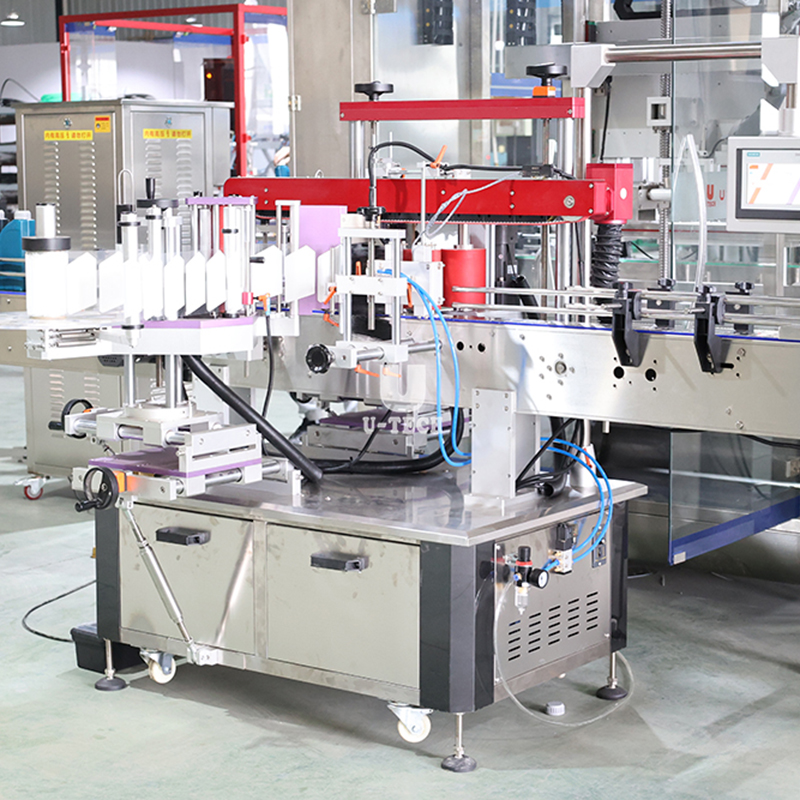

Adhesive labeling machine
The machine can simultaneously achieve two-sided circumferential surface labeling and labeling features to satisfy the flat bottles, square bottles and bottle shaped single-sided and double side labeling, the entire circumference of the cylindrical body a half weeks labeling, widely used cosmetics industry, daily chemical industry. Optional Tape printer and inkjet printer to achieve the production date printed on the label and batch information to achieve labeling – endowed integration.
Technical parameter
Model | UT-3 |
Forming and sealing speed | 10ctns/min |
Carton storage quantity | 100pcs (1000mm) |
Carton size | L200-450×W150-400×H100-400mm |
Power supply | 110/220V, 50/60Hz, 1 Phase |
Power | 200W |
Applicable tape | 48/60/75mm (Choose one type) |
Machine size | L2000×W1900×H1450mm |
Machine weight | 450kg |
