Introduction

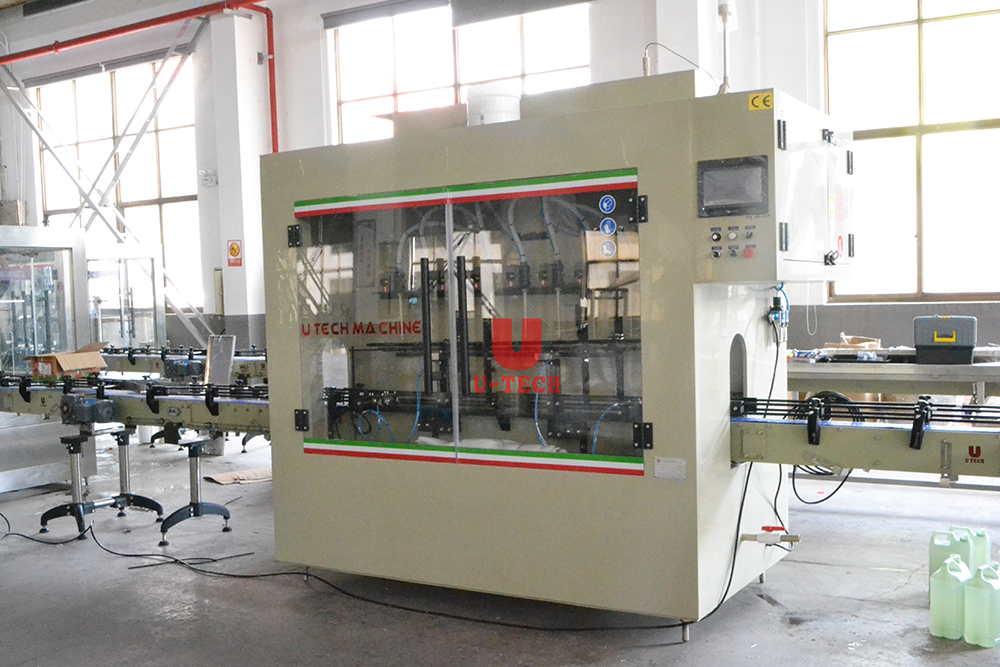

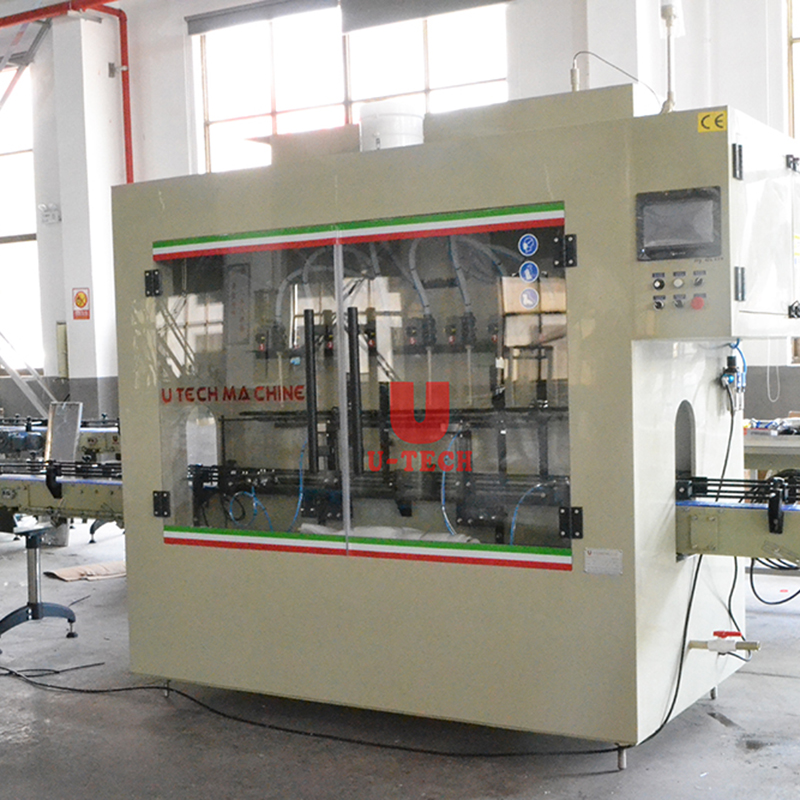

Anti-Corrosion inline liquid filling machine is a newly developed product by our company. It is developed wholly in corrosion standards. It is a high-tech filling equipment that is a combination of a microcomputer (PLC) controlled photoelectric sensor and pneumatic actuator.
It is specially used for high corrosive liquid, such as bleach liquid, 84 disinfection liquid, toilet clean fluid, Bleach liquid,and so on. can be used to fill corrosive liquid both with sticky or not and can fill round bottles or any other bottles(e.g: angle neck bottle). With features, such as precise filling volume, no drip, photoelectric detection, and no filling when without a bottle.
Machine details

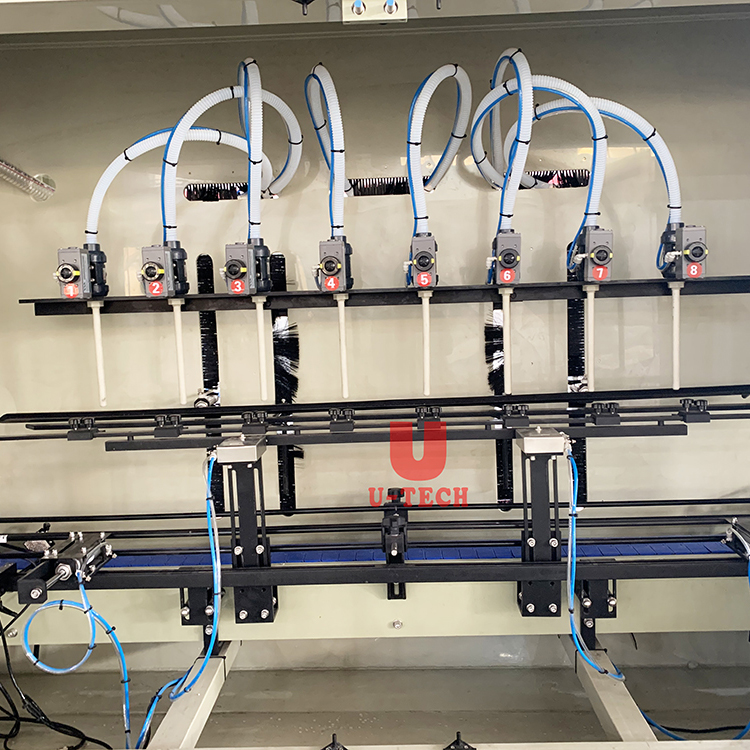

Filling part

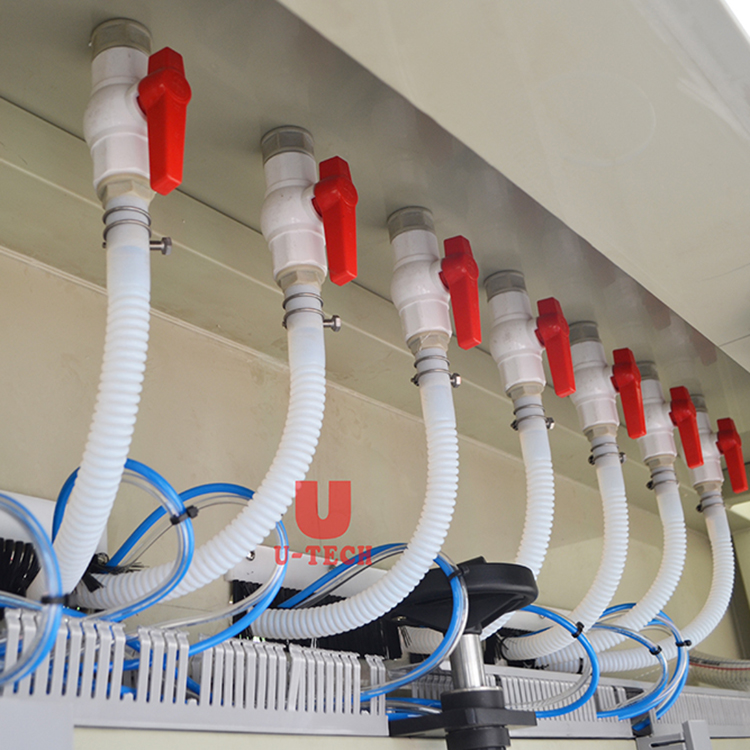

The whole machine adopts anticorrosive PP material. The feeding pipe is made of titanium alloy with high strength and corrosion resistance.
Independent anti-corrosive appliance control cabinet, safe and reliable. Aviation pipeline plug, waterproof, electricity-proof and dust-proof, safe and reliable.

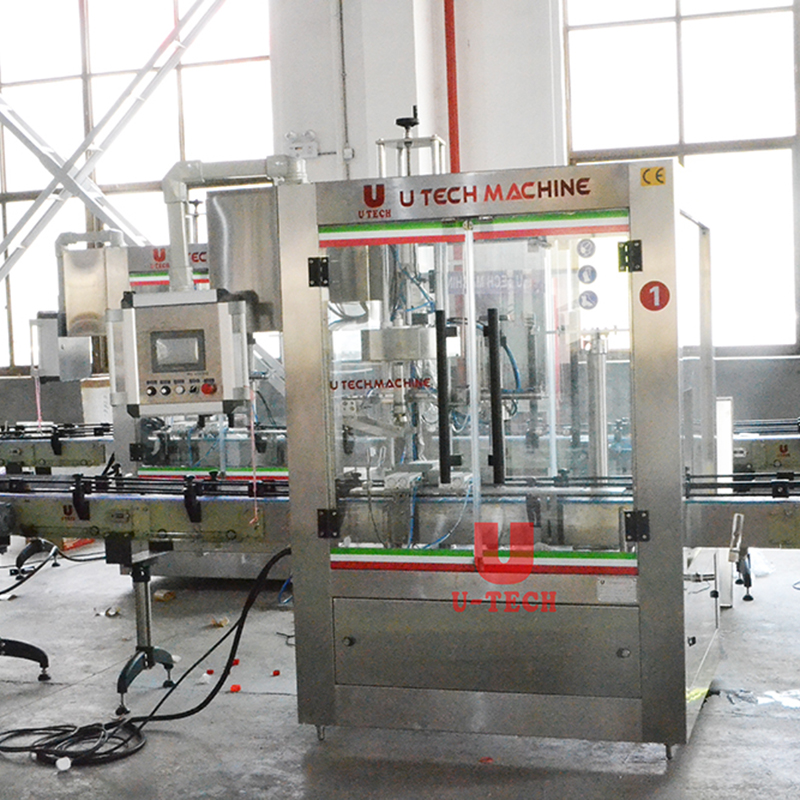

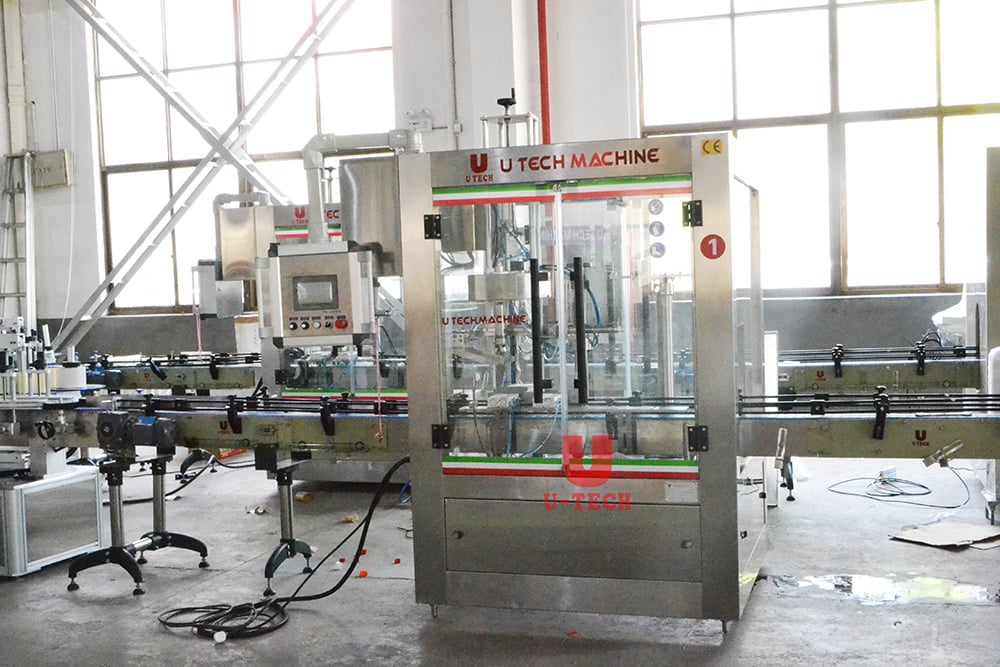

Capping part
This machine applies and torques caps into containers . It's suitable for various material and figure containers . Such as plastic bottles , glass bottle , and metal bottle . If we want to change different material or figure bottles and caps for tightening , we do not need change any components . We just adjust the position of several components . No bottle no cap falling .Cap unscrambler machine , conveyor ,cap screw parts, bottle clamping strap can be conversion adjusted to meet the tightening requirements for various bottles and caps . The machine is made of good type stainless steel , also applied to GMP standard requirement .
Technical Parameters
| Model | UT-6 | UT-8 | UT-10 | UT-12 | UT-14 | UT-16 |
| Filling Range | 100-5000ml, customized for other sizes | |||||
| Ideal Filling Range | 100-1000ml/500-3000ml/1000-5000ml | |||||
| Measurement method | Time control, flow meter control, gravity filling, suitable for materials without viscosity | |||||
| Filling Nozzle | 6 | 8 | 10 | 12 | 14 | 16 |
| Filling capacity(based on 1000ml) | ≤ 1000 bottles/hour | ≤ 1300 bottles/hour | ≤ 1600 bottles/hour | ≤ 2100 bottles/hour | ≤ 2400 bottles/hou | ≤2700bottles/hour |
| Filling Accuracy | ±1% | |||||
| Voltage | AC220V/380V 50-60HZ (Special customizable) | |||||
| Power | 1.2KW | 1.2KW | 1.5KW | 1.5KW | 2KW | 2KW |
| Air pressure | 0.5-0.8Mpa | |||||
| Dimension(mm) | 2000*1150*2200 | 2200*1150*2200 | 2400*1150*2200 | 2600*1150*2200 | 2800*1150*2200 | 3000*1150*2200 |
