Product introduction
This type machine is suitable for filling viscous,inviscid and corrosive liquid.It's widely applied in plant oil,chemical liquid,and daily chemical industry.It adopts linear type filling,electromechanicainstrucmental intergration controlling.It's simple and rapid for changing the varieties with unique design and superior capability.It's appearance accords with the international machinery concept.
Technical parameter
Containers and Specifications | ||||
Project Name:Automatic Oil Filling Machine | Oil and Fat Products | |||
Bottle Material | Bottle Shape | Filling Range | Filling Heads | Production Capacity |
PET / PP / PE / Glass / Metal | Round / Square/ Unique Shape | 200ml-6000ml | 16 | 700-4000bph |
Filling Valve | Each filling valve is controled by servo motor ,realizing segmented high-and low-speed control ; vacuum resorption devices without leakage. | |||
Cap closing method | applicability for both crowning and capping, mechanical instant sealing or servocontrolled sealing | |||
Bottle components | rapid replacement without tools, such as star wheels for bottle infeed and outfeed, and bottleneck clamps | |||
Filling precision | limit deviation: ±2-3g standard deviation: 1.5 | |||
User Ambient Conditions | Temperature:10~40℃;Humidity:No dew | |||
User Electrical Supply Specification | Voltage:380V±5%, 3phase; Frequency:50HZ±1% |
Machine details

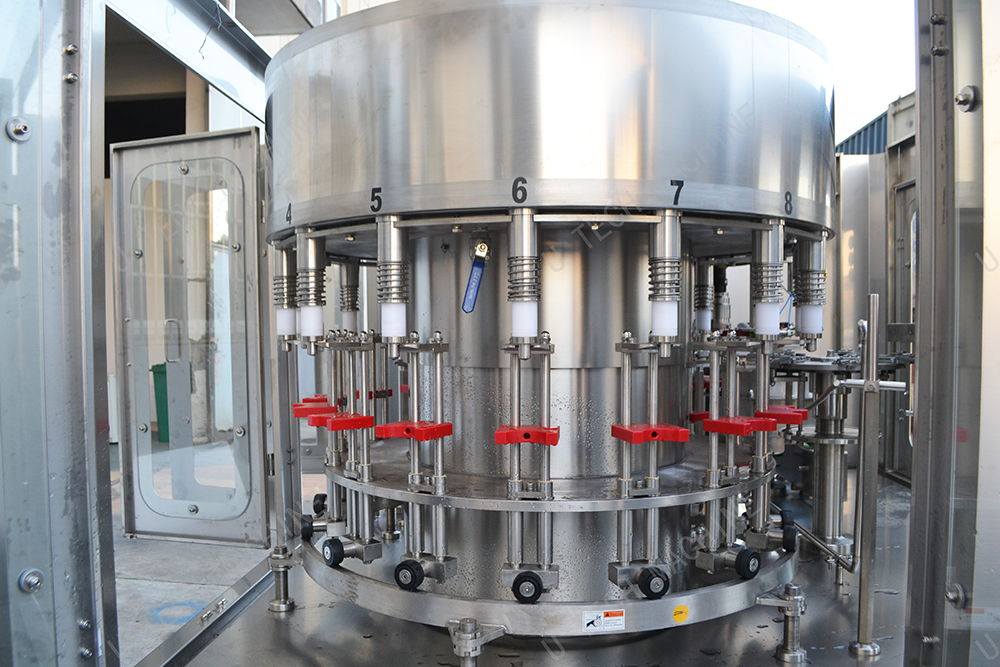

Name: filling heads
Brand: U Tech
Original: Jiangsu China
gravity filling with holding bottle neck; the special back flow type of the filling valve can avoid leakage after filling and also control liquid level accurately.

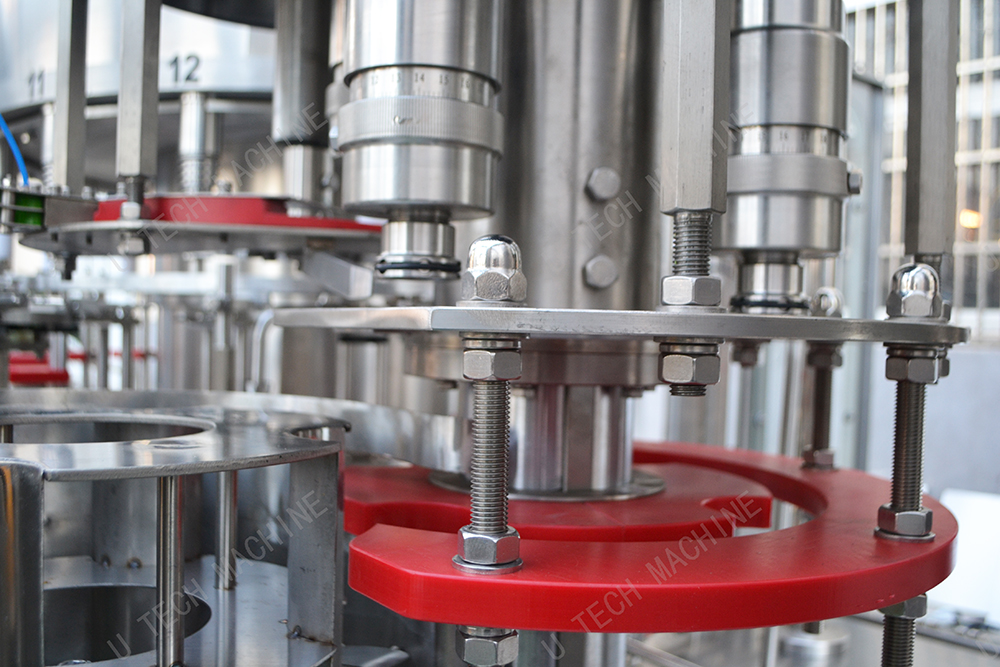

Name: capping heads
Brand: U Tech
Original: Jiangsu China
High speed and mass flow filling valve ensures the high filling speed and exact fluid level. Parts contacting liquid are all made of excellent stainless steel or food grade engineering plastic.
