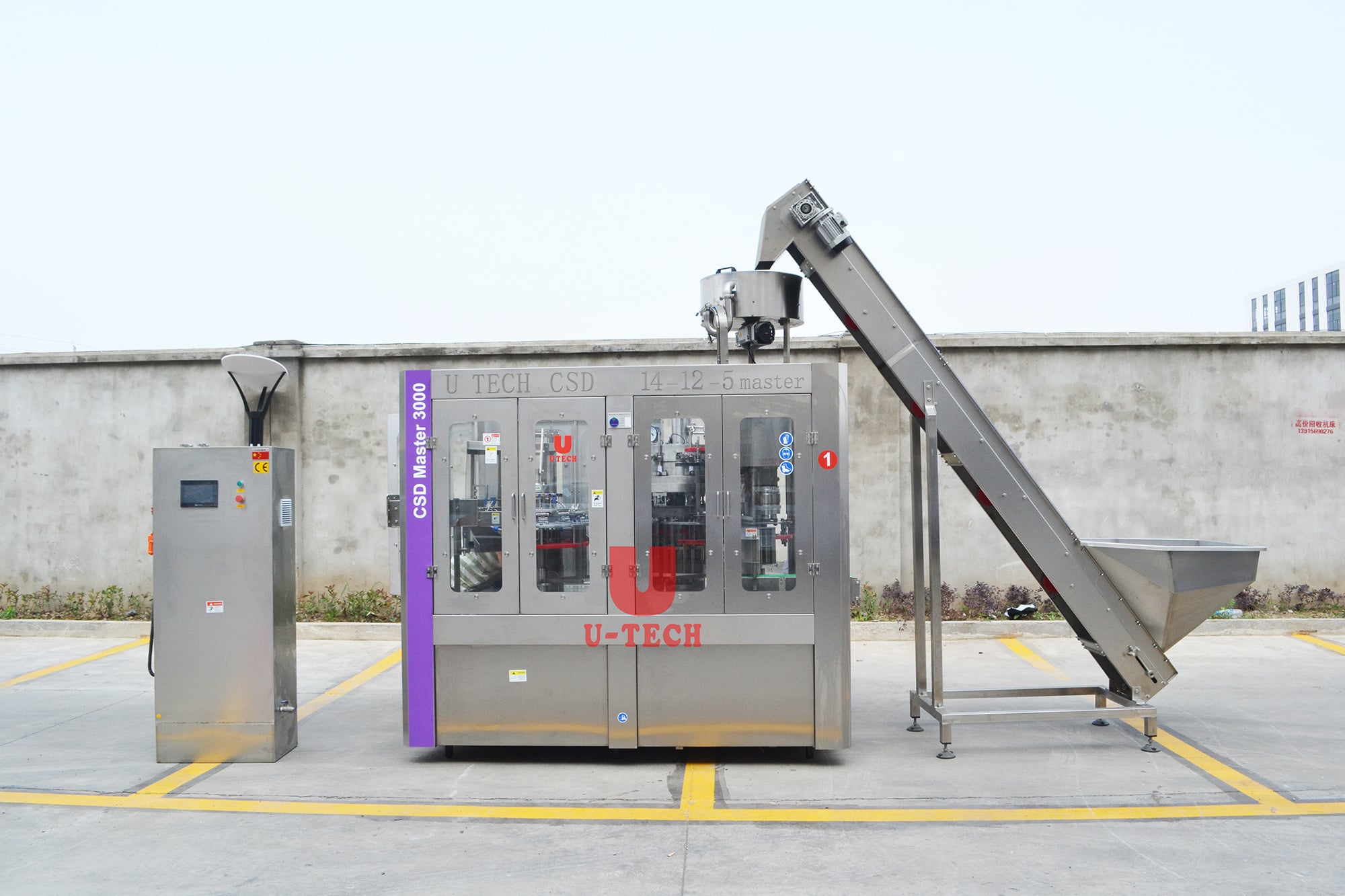

Product introduction
DCGFseries use unique design, reduce the broken of the bottle, make the whole filling system more stable and high productivity.
Machine details

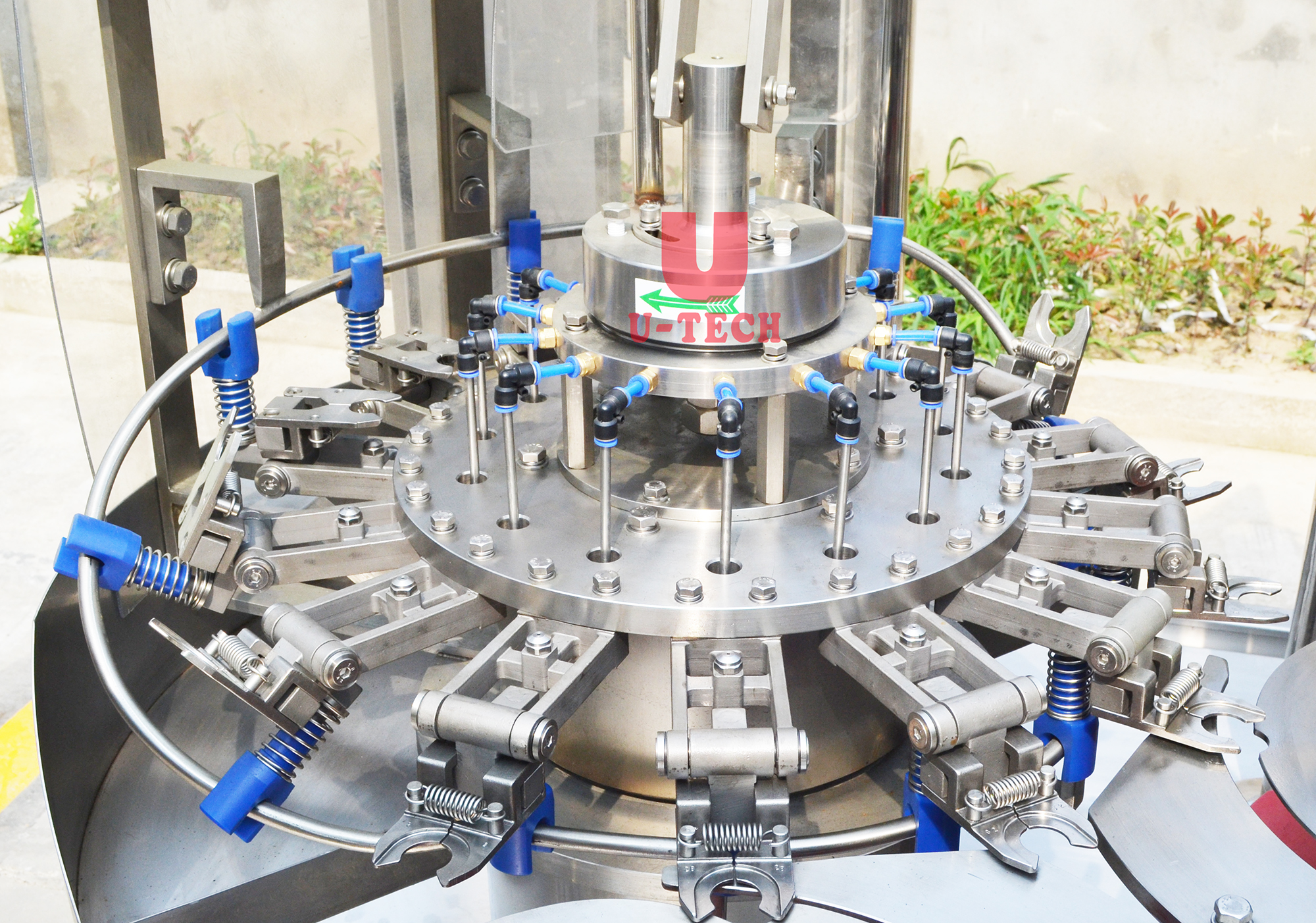

Washing Parts
The rinsing part using high-strength stainless steel bottles of spring-loaded folders,to ensure a stable reversal of the bottles. The nozzle is a plum-like structure can wash every corner of the sidewall bottom to make the bottle clean.

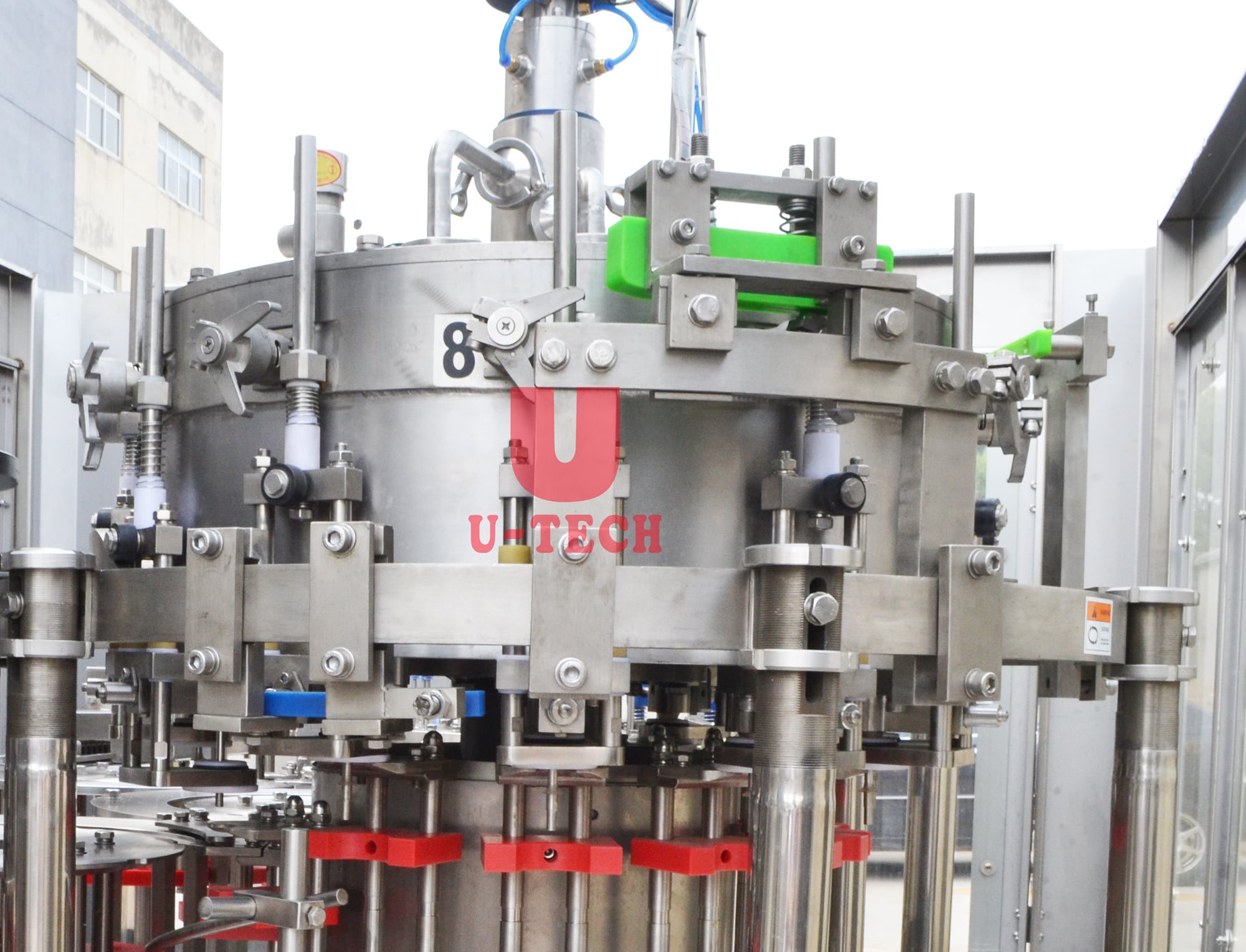

Filling Parts
Spring-type mechanical lifting equipment to upgrade bottles, large bearing support floundering in the vat and use of guide-rod in the orientation of the structure, there are pre-cover features. Fill valve before filling have Double vacuum.

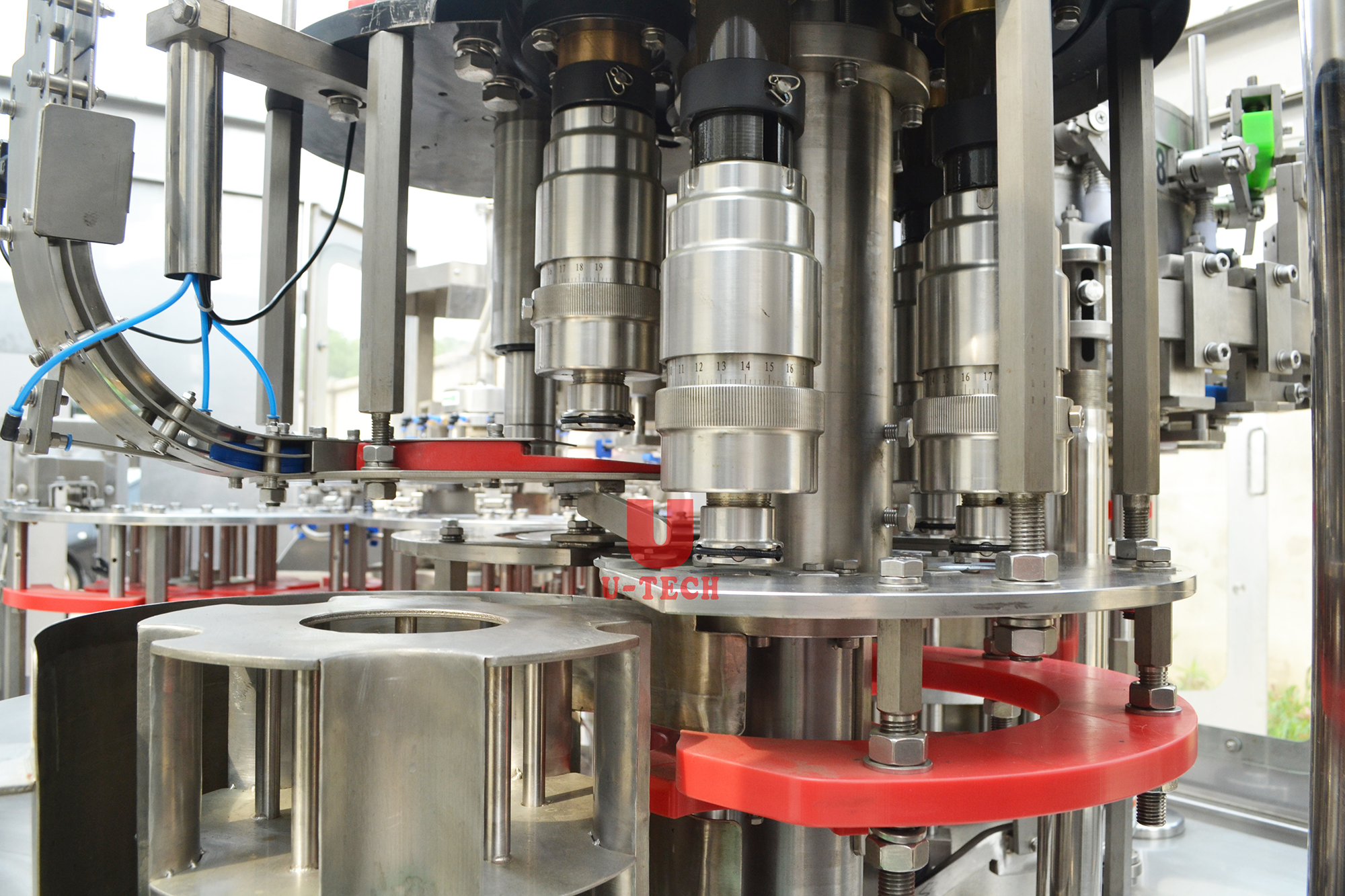

Sealing Parts
Use hot water bubble set to displace bottlenecks air, ensuring the oxygen content of less than 0.15mg 1 L.The caps are free from deforming,and can flow smoothly in large quantities during transmission.
Technical parameter
| Model | DCGF8-8-3 | DCGF14-12-5 | DCGF16-16-5 | DCGF24-24-6 | DCGF32-32-8 | DCGF40-40-10 |
| Capacity(500ML) | 1000BPH | 2500BPH | 4000BPH | 6000BPH | 9000BPH | 12000BPH |
| Washing Heads | 8 | 14 | 16 | 24 | 32 | 40 |
| Filling Heads | 8 | 12 | 16 | 24 | 32 | 40 |
| Capping Heads | 3 | 5 | 5 | 6 | 8 | 10 |
| Suitable Bottle | PET Bottle ,Plastic Bottle | |||||
| Diameter of bottle | Diameter: 55-110 MM | |||||
| Height Of Bottle | 150-310MM | |||||
| Suitable Cap | Plastic Screw Cap | |||||
| Weight | 1500kg | 2000kg | 3000kg | 5000kg | 7000kg | 7800kg |
| Main Motor Power | 1.2kw | 1.5kw | 3kw | 3kw | 3kw | 5.5kw |
