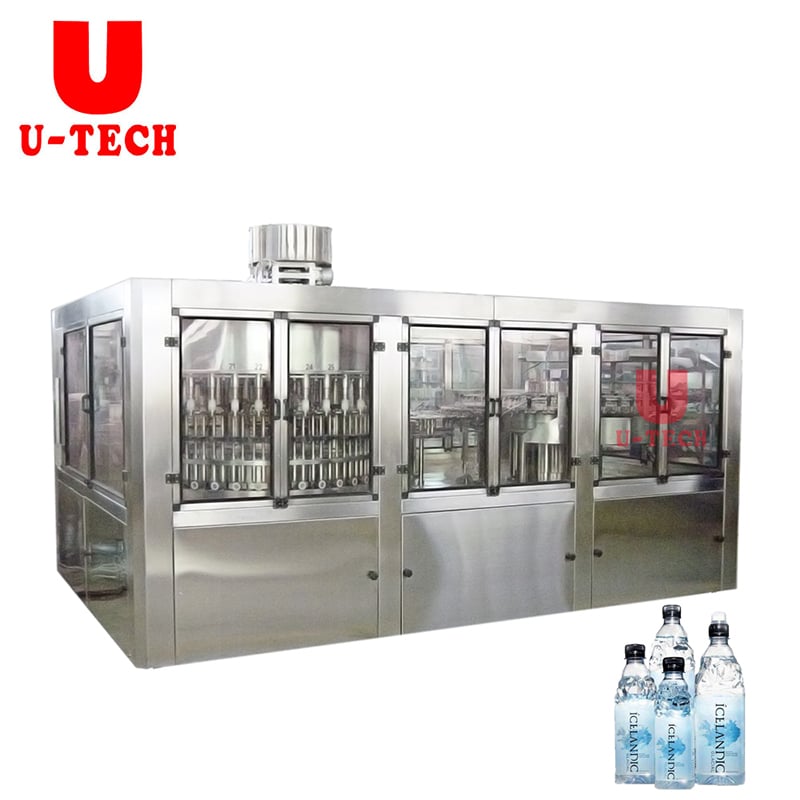

15000BPH pure water filling line

Product introduction

The washing, filling and capping will be finished just by this one machine.It is very convenient to change bottle size by means of advanced bottle conveying technology-bottle neck clamping & bottle suspending technology.


Machine details

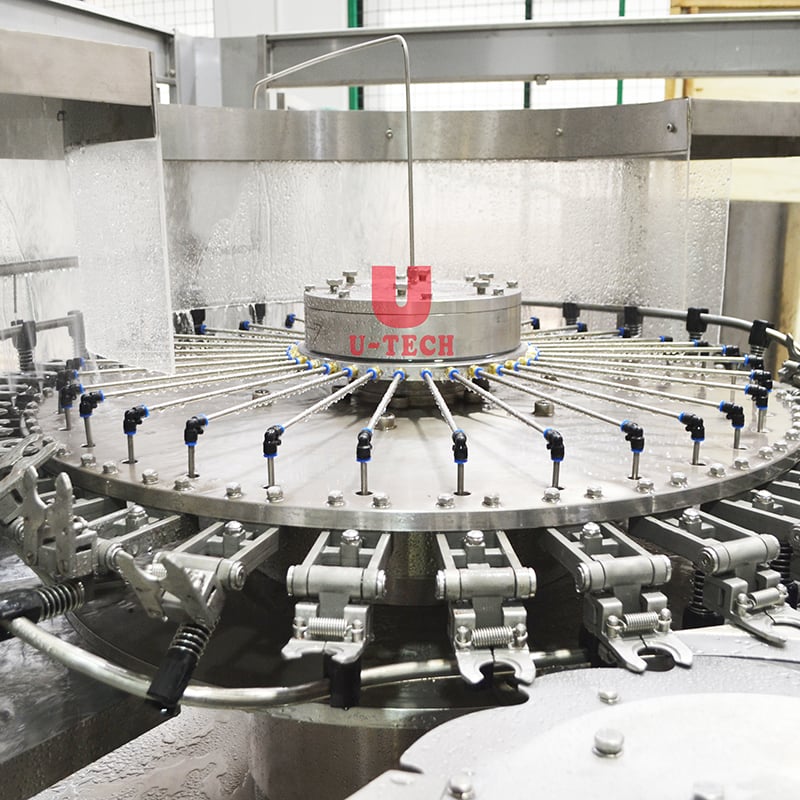

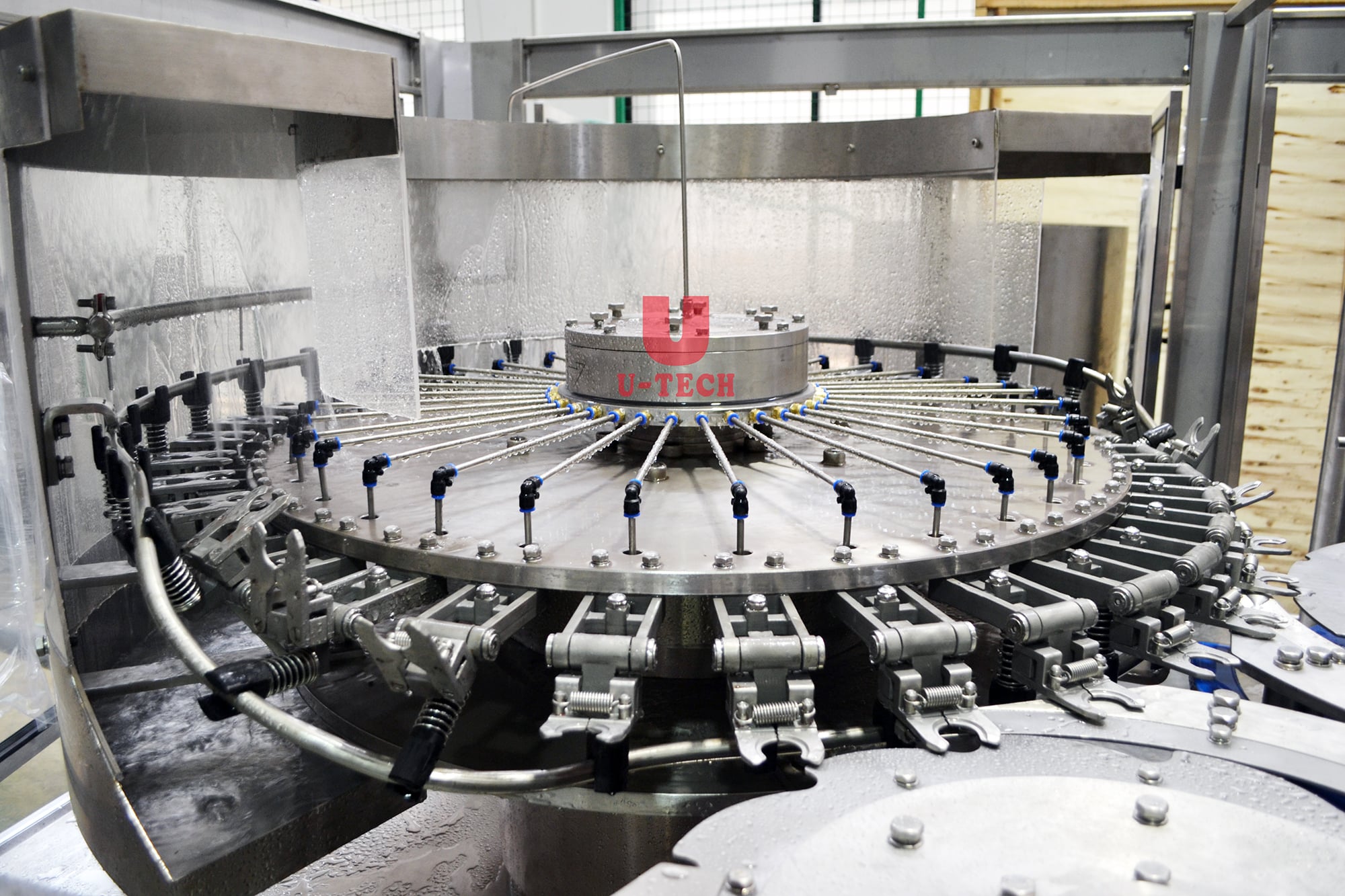

Washing heads

1.Stainless steel 304/316L washing heads.

2.Using unique design,avoid the traditional bottle on rubber clip to block the bottle threaded parts may be caused by the pollution.

3.Washing pump is made of stainless steel.

4. By high spray nozzle, blunt bottle of water jet angles, flush to the bottle of any part of the inner wall, rinse with water thoroughly and save flush bottle.

5. Bottle clamp and flip agencies sliding sleeve adopts Germany igus corrosion resistant bearing without maintenance.

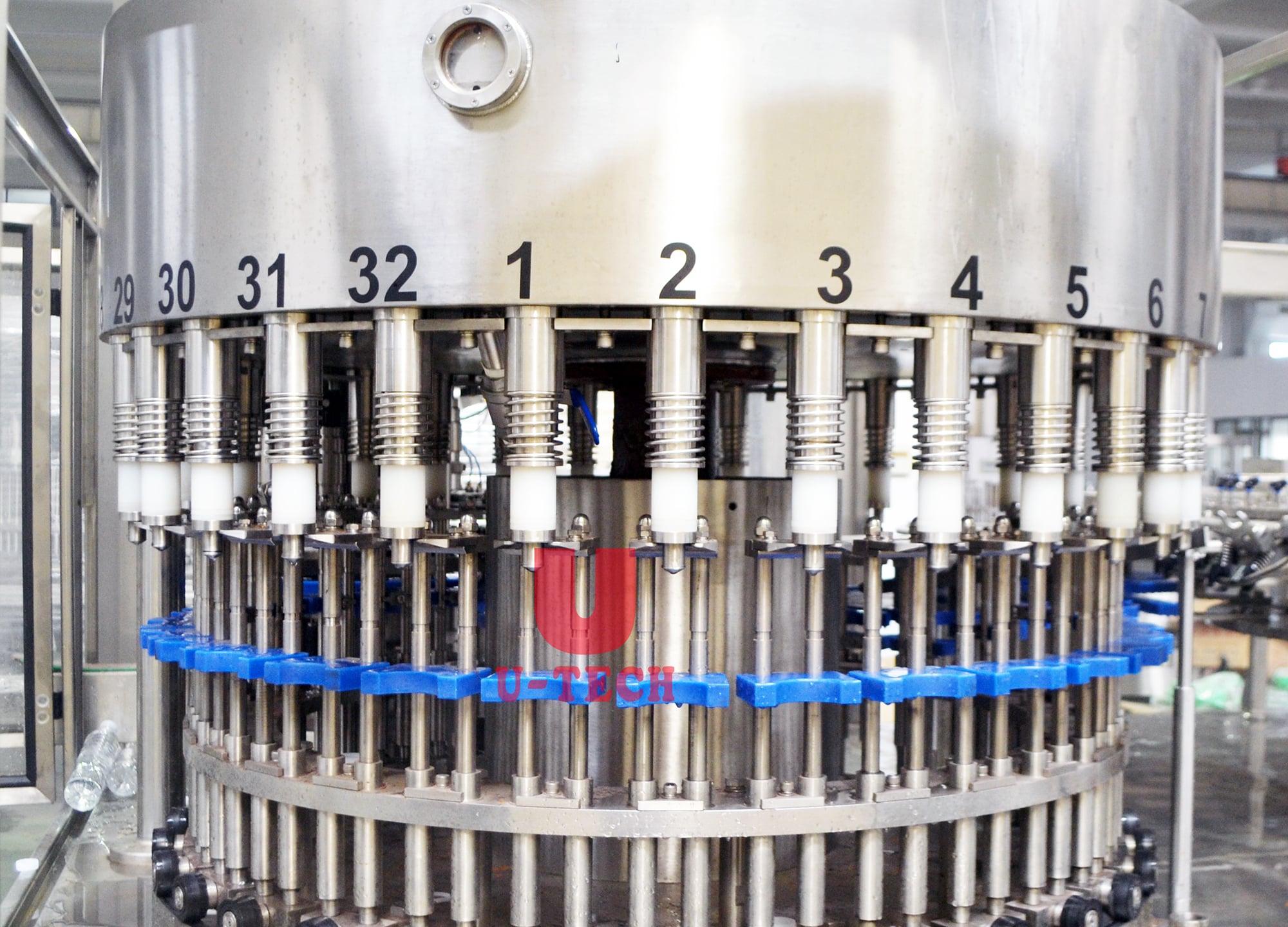

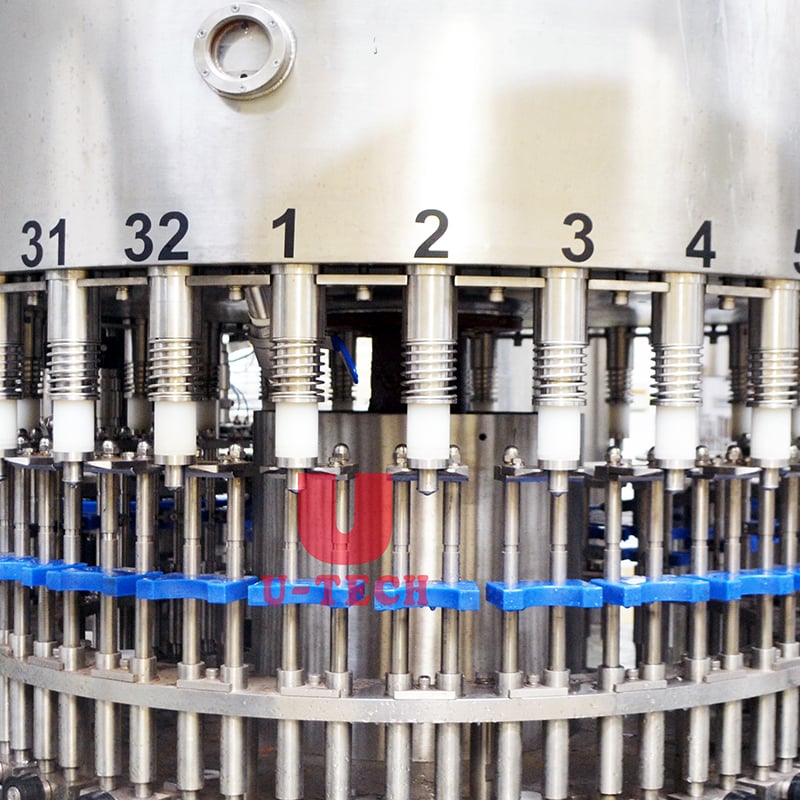

Filling heads

1.Filling method for gravity filling.

2.Filling valve manufactured SUS 304/316L.

3.High precision, high speed liquid filling.

4.Filling move by the rack drive system through gear transmission.

5.Hydraulic cylinder controlled by a float liquid level.

6.Using the latest double guide pillar type bottle of lifting mechanism, avoid the bottle of elevating the old products must be through the mesa caused by leakage on the edge, at the same time, easy installation and maintenance.

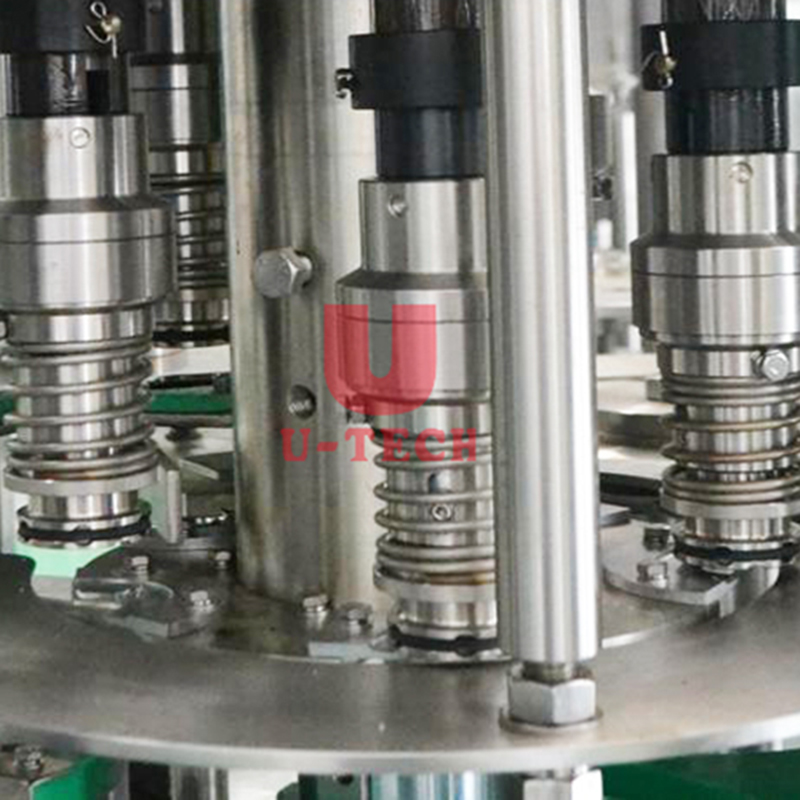

Capping heads

1.Automatic check,no bottle no capping.

2.Capping heads in stainless steel 304/316L.

3.Capping heads stop working when lack of bottle.

4.Fall guy guide sets out to prevent the cover through and cover on the body, at the same time equipped with a set of photoelectric switch, automatic stop when lighted cover rail without cover machine, can effectively avoid the occurrence of open bottle.

5.High efficiency centrifugal principle.

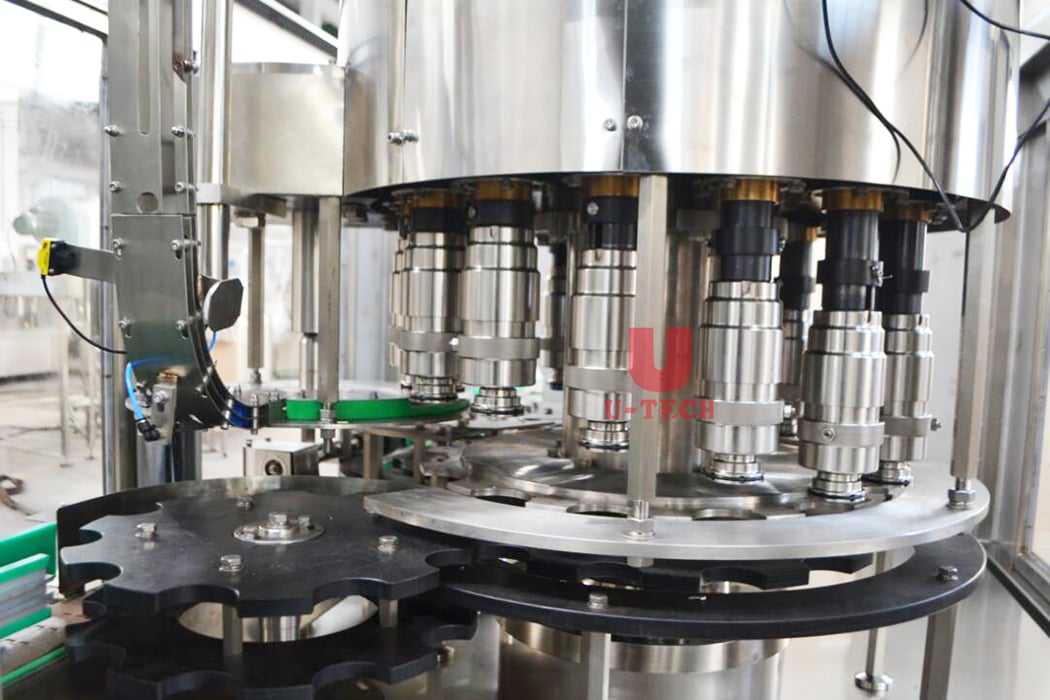

capping heads.jpg

Technical parameter

Model CGF32-32-8
Working stations Washing 32, filling 32,capping 8
Capacity(500ml) 15000B/H
Suitable bottle type Φ50-Φ115   H=190-320
Air source pressure 0.7MPa
Air consumption 0.8m3/min
Rinsing water pressure 0.2-0.25MPa
Rinsing water consumption 2.5T/h
Man motor power 2.5KW
Overall machine power 3KW
Dimension 3300×2123×2700
Total weight 4000kg
